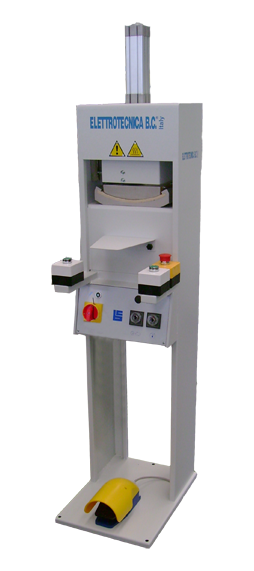

Elettrotecnica BC Mod 129/1S Toe puff attaching machine
Seller offers
There are no published seller offers yet.
Description
Toe puff attaching machine
Macchine applica puntali 129-1S
This model is equipped with a device which holds the toe puff in place on upper before pressing
to prevent shifting of the toe puff
Mould temperature adjustable up to 250° C (482° F)
Dwell time adjustable up to 30”
TECHNICAL DETAILS
Air consumption at 6 Bar: 26 Lt/Min
Dimensions: cm. 51 (20”) x 37 (15”) x 163 (66”)
Net weight: kg. 65 ( 154 LBS)
Electric power: 0,5 Kw
Russian name
Elettrotecnica BC Mod 129/1S Машина для вставки подноска
Specifications
| BLOG_POST_ID | 74076.0000 |
|---|---|
| PRODUCER | Elettrotecnica BC |
| TEST | ["Elettrotecnica BC Mod 129/1S Машина для вставки подноска"] |
| F_ELETTRO | Вставка подноска |
| META_DESCRIPTION_EN | This machine affixes toe puffs to the uppers of shoes using heat and pressure while holding the toe puff in place to prevent shifting. |
| META_KEYWORDS_EN | Toe, Puff, Attaching, Machine, Lasting, Footwear, Shoe, Manufacturing, Equipment, Pressing |
