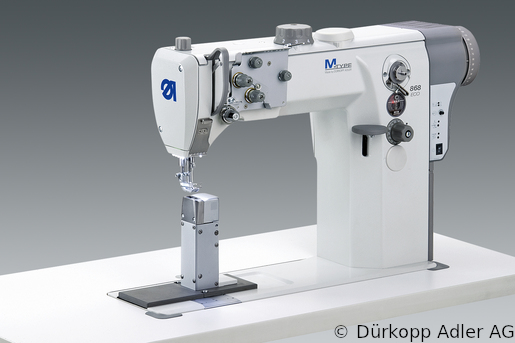

868-190020-M Dürkopp Adler 1-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990201 003)

Name: 868-190020-M Dürkopp Adler 1-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990201 003)
Brand: Durkopp Adler
SKU: 0868 990201 003
Price: 9654.75 EUR
Availability: BackOrder

SKU: 0868 990201 003

Seller offers

There are no published seller offers yet.

Description

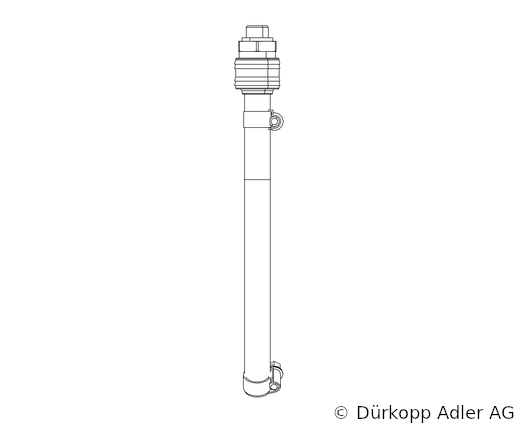

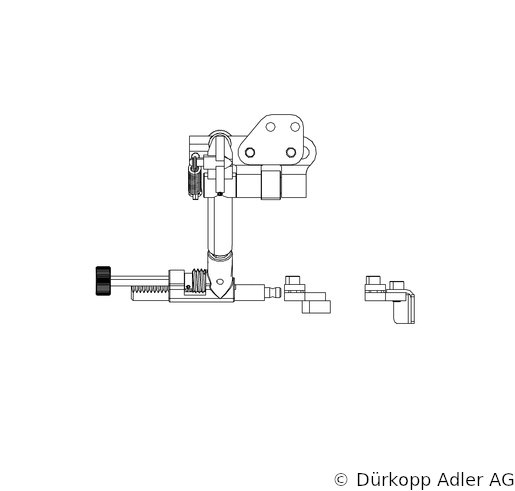

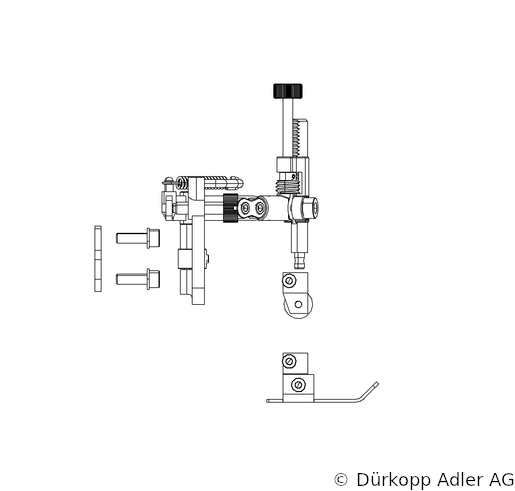

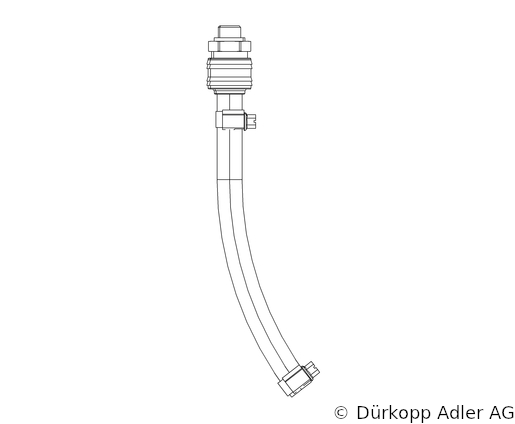

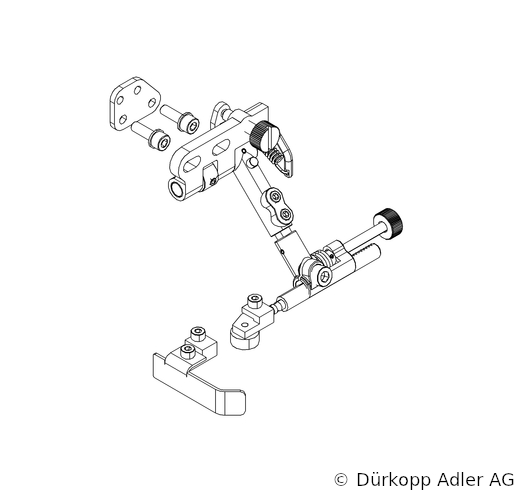

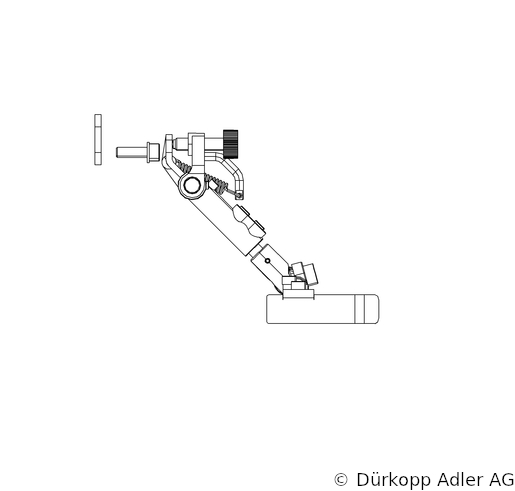

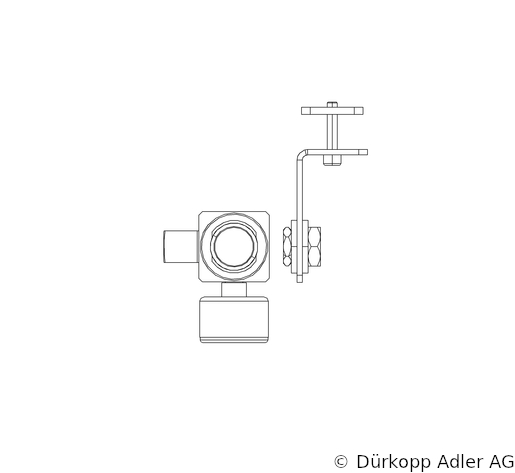

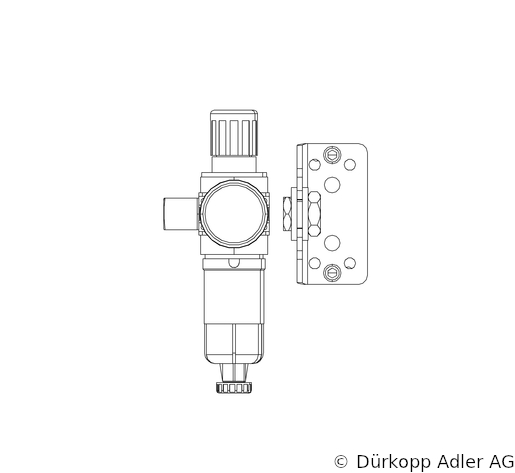

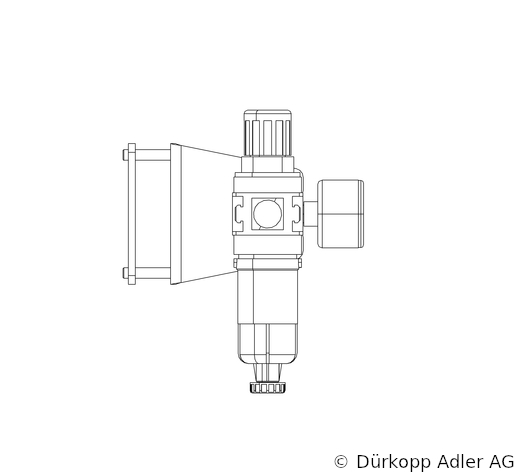

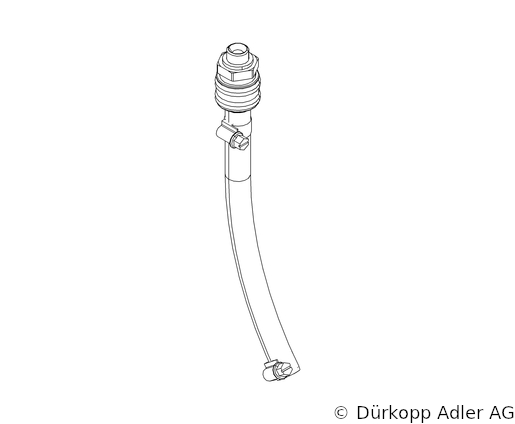

Dürkopp Adler 1-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed. Features: integrated sewing drive incl. integrated DAC eco M-TYPE control safety clutch large, two-piece vertical hook Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 140, 150, 160, 170, 180. WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit SEWING LIGHT [9880 867102]: Integrated sewing light (LED) PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package Pneu. foot lift [0867 590354]: Pneumatic sewing foot lift Combined hinged roller [N800 080004]: Combined roller and straight guide, right, hinged, elevation adjustment

Russian name

868-190020-M Одноигольная машина челночного стежка с колонковой платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0868 990201 003)

Specifications

ART	0868 990201 003
PRODUKTSIYA	["Мягкая мебель", "Кожгалантерея"]
MATERIALS	["0868 990201", "0791 868501", "0791 868751", "0791 868741 EN", "0868 E00109", "9780 000108", "9880 867102", "0797 003031", "0867 590354", "N800 080004"]
MORE_PHOTO	["284514", "284515", "284516", "284517", "284518", "284519", "284520", "284521", "284522", "284523", "284524", "284525", "284526", "284527", "284528", "284529"]
TYPE_STICH	Челночный
KOLICHESTVO_IGL	1
TIP_CHELONOKA	Большой, двойной вертикальный челнок
OSNOVNYE_TEKHNICHESKIE_KATEGORII	Колонковая
PROIZVODITEL	Dürkopp Adler
TIP_TRANSPORTA	Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
VYSOTA_PODEMA_LAPKI	20
MATERIAL	Средние
TOLSHCHINA_IGLY_NM	["140", "150", "160", "180", "170"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH	2500
PRIVOD	Встроенный швейный привод включая встроенный DAC eco M-TYPE блок управления
ELEKTROPODKLYUCHENIE	1 x 190-240 V 50/60Hz
MAKSIMALNAYA_DLINA_STEZHKA_V_MM	9
AVTOMOBILESTROITELNYE_SHVEYNYE_OPERATSII	["Подготовка / Сборка подлокотника", "Изготовление подголовника"]
KLASS	868
SUBKLASS	190020-M
