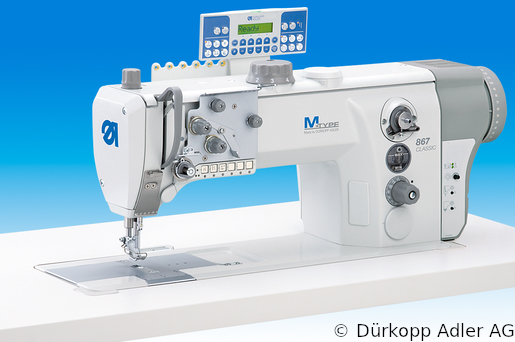

867-190122-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990218 011)

Name: 867-190122-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990218 011)
Brand: Durkopp Adler
SKU: 0867 990218 011
Price: 11646.25 EUR
Availability: BackOrder

SKU: 0867 990218 011

Seller offers

There are no published seller offers yet.

Description

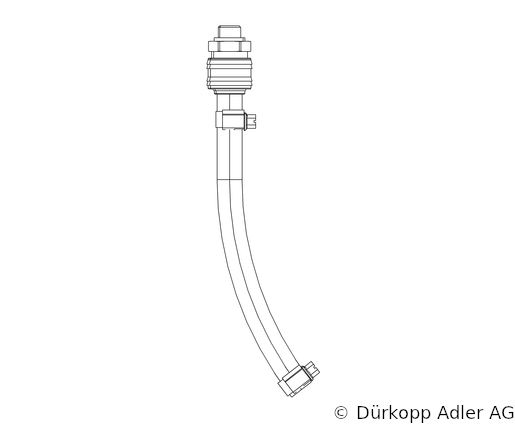

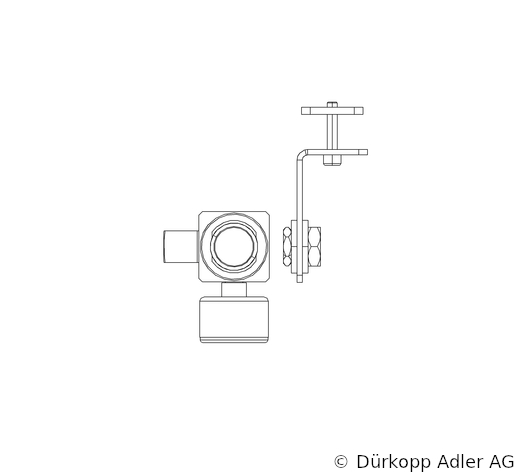

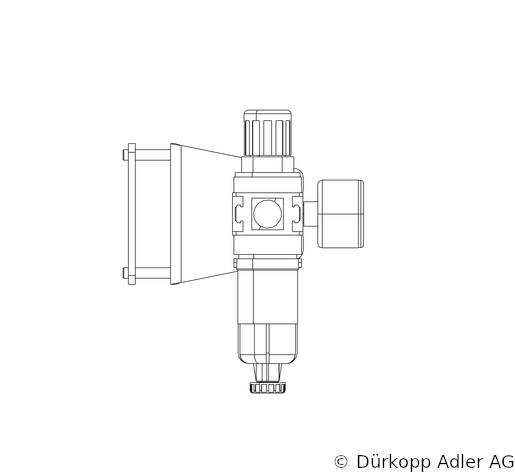

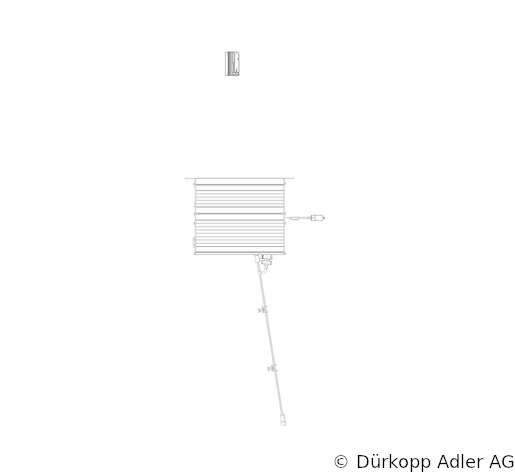

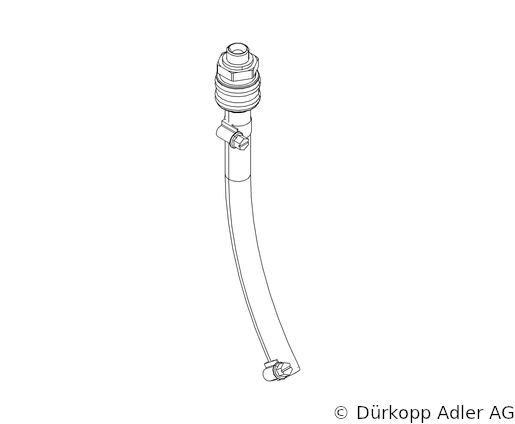

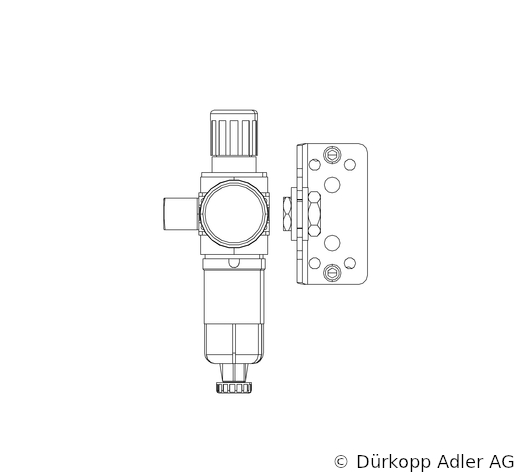

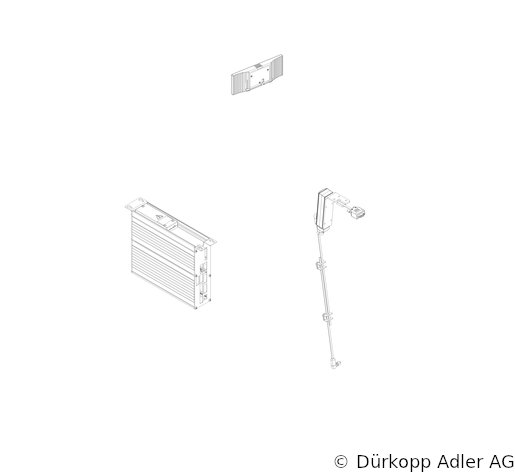

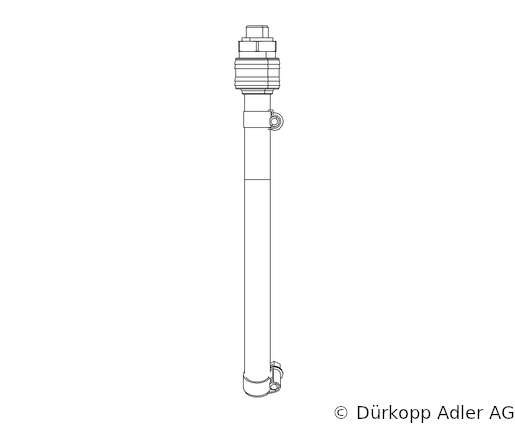

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: integrated sewing drive incl. DAC classic control box and operation panel OP1000 lockstitch sewing head with light barrier for flap-length control, electropneumatic seam backtacking, electropneumatic sewing foot lift, integrated transformer for sewing lights, safety clutch large, two-piece vertical hook Maximum Stitch Length (in mm): 12,00 Needle thickness (nm): 140, 150, 160, 170, 180 Maximum thread thickness: 20. PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package M-TYPE MAINTENANCE [9081 300001]: M-TYPE maintenance tool kit WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit

Russian name

867-190122-M Одноигольная машина челночного стежка с плоской платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0867 990218 011)

Specifications

ART	0867 990218 011
PRODUKTSIYA	["Мягкая мебель", "Кожгалантерея"]

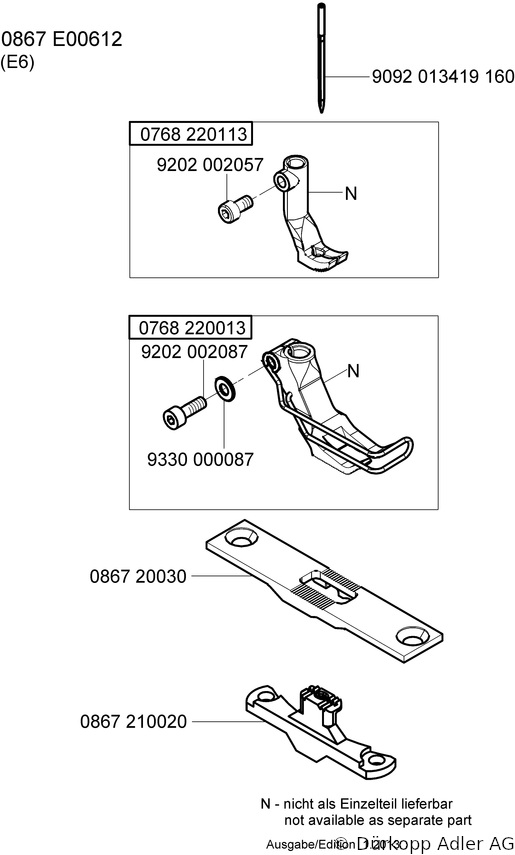

MATERIALS	["0867 990218", "9800 210001 R", "0791 867519", "0791 867750 DE", "0791 867750 EN", "0867 E00612", "0797 003031", "9081 300001", "9780 000108"]
MORE_PHOTO	["265625", "265626", "265627", "265628", "265629", "265630", "265631", "265632", "265633", "265634", "265635", "265636"]
TYPE_STICH	Челночный
KOLICHESTVO_IGL	1
TIP_CHELONOKA	Большой, двойной вертикальный челнок
OSNOVNYE_TEKHNICHESKIE_KATEGORII	С плоской платформой
PROIZVODITEL	Dürkopp Adler
TIP_TRANSPORTA	Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
VYSOTA_PODEMA_LAPKI	20
MATERIAL	Средние
TOLSHCHINA_IGLY_NM	["140", "150", "160", "180", "170"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH	3800
PRIVOD	Встроенный швейный привод включая DAC классический блок управления и панель управления OP1000
ELEKTROPODKLYUCHENIE	1 x 190-240 V 50/60Hz
MAKSIMALNAYA_DLINA_STEZHKA_V_MM	12
MAKSIMALNAYA_TOLSHCHINA_NITI	20
KLASS	867
SUBKLASS	190122-M
