0868 E04309 5 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 5 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 9 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 5 mm,
needle size Nm 110-140, stitch length
max. 9 mm, for medium weight material.

Node ID: E43/5/9
Compatible subclasses: 868, 868M
Material number: 0868 E04309 5

Diagrams and additional information

4

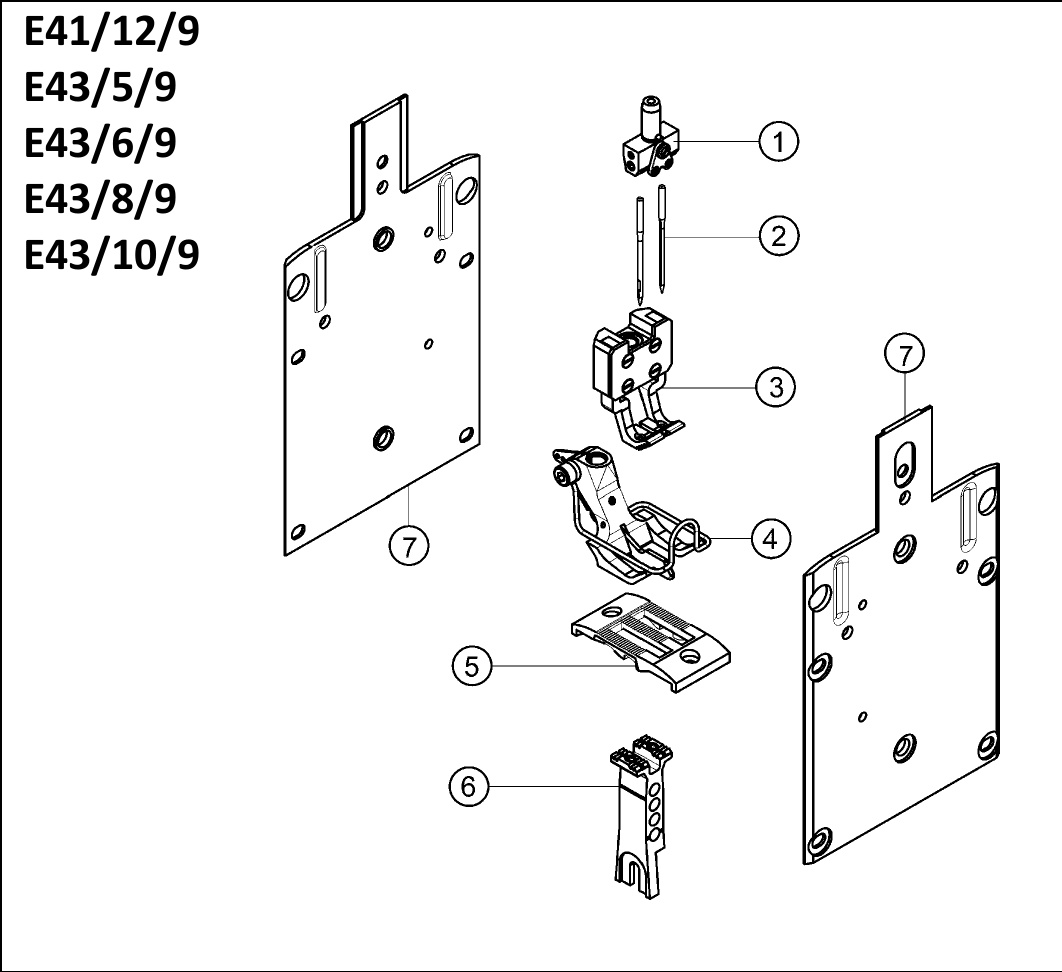

0868 E04309 5 · Schema — Diagram Open original ↗

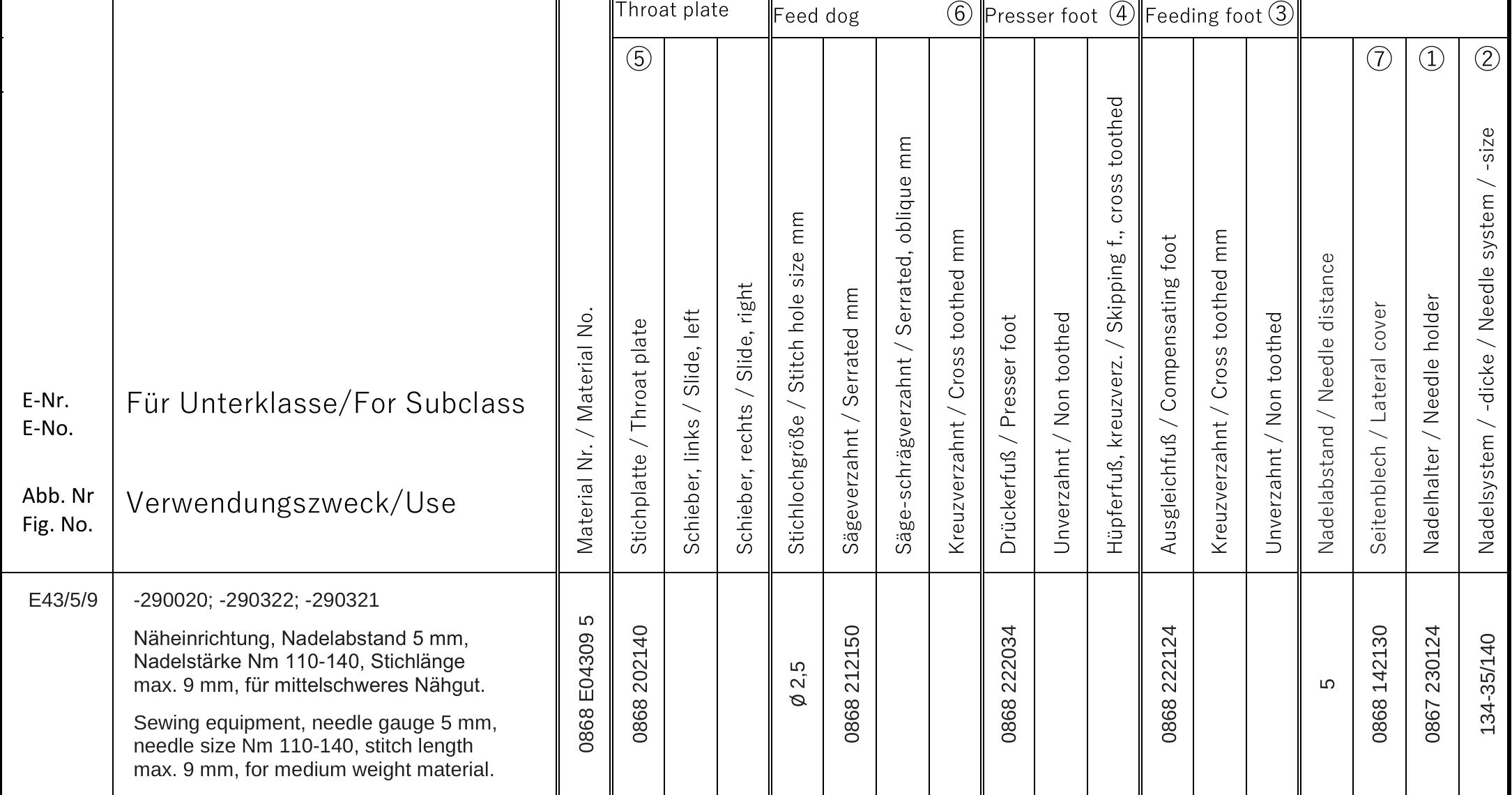

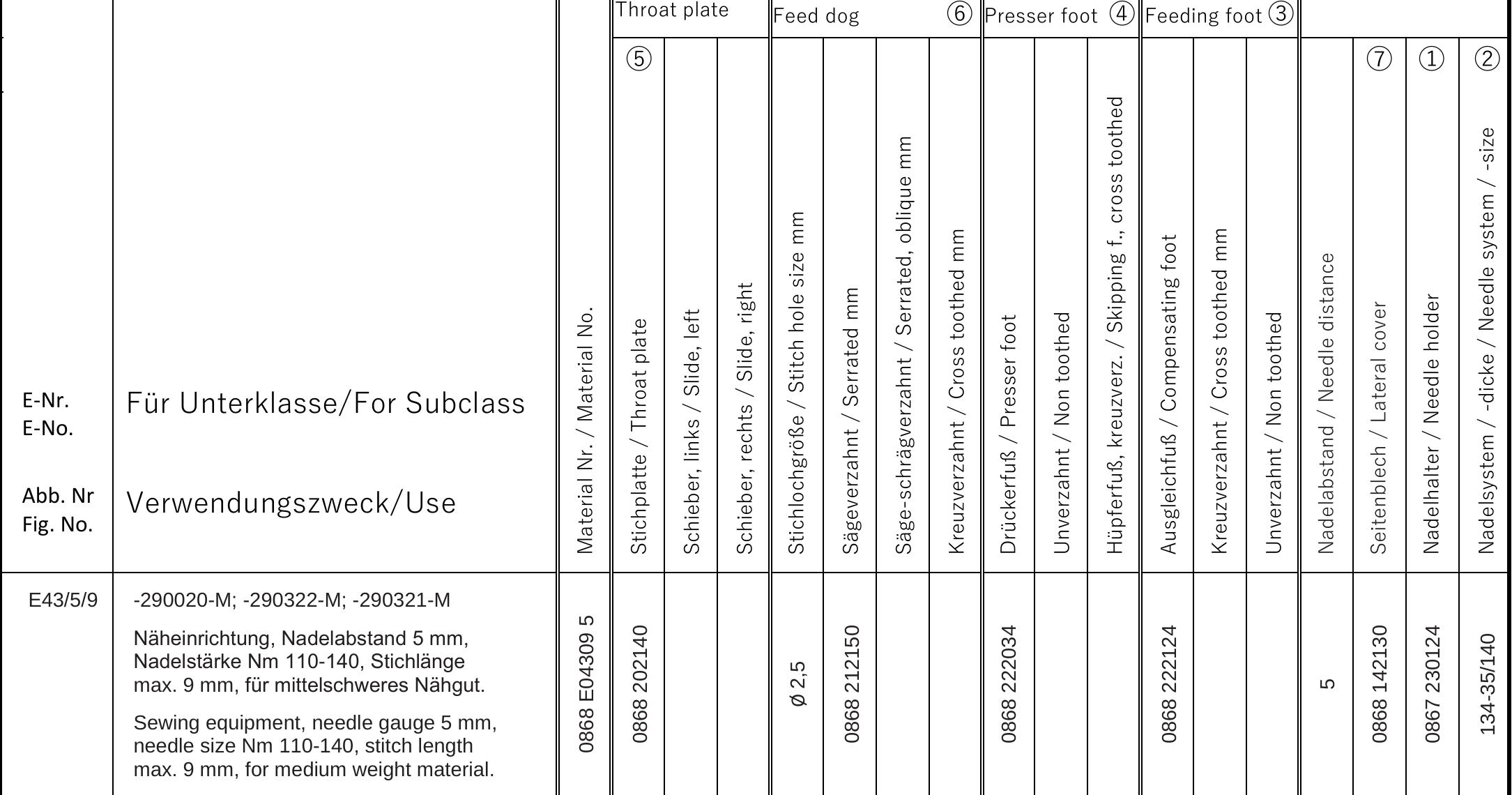

0868 E04309 5 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0867 230124	0867 230124 — иглодержатель	189.74 EUR	→
0868 142130	0868 142130 — боковая пластина	99.36 EUR	→
0868 202140	0868 202140 — игольная пластина	78.73 EUR	→
0868 212150	0868 212150 — зубчатая рейка	107.02 EUR	→
0868 222034	0868 222034 — прижимная лапка	206.10 EUR	→
0868 222124	0868 222124 — компенсационная лапка	257.26 EUR	→

Compatible machine configurations

1

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 057)
