0868 E04309 10 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 10 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 9 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 10 mm,
needle size Nm 110-140, stitch length
max. 9 mm, for medium weight material.

Node ID: E43/10/9
Compatible subclasses: 868, 868M
Material number: 0868 E04309 10

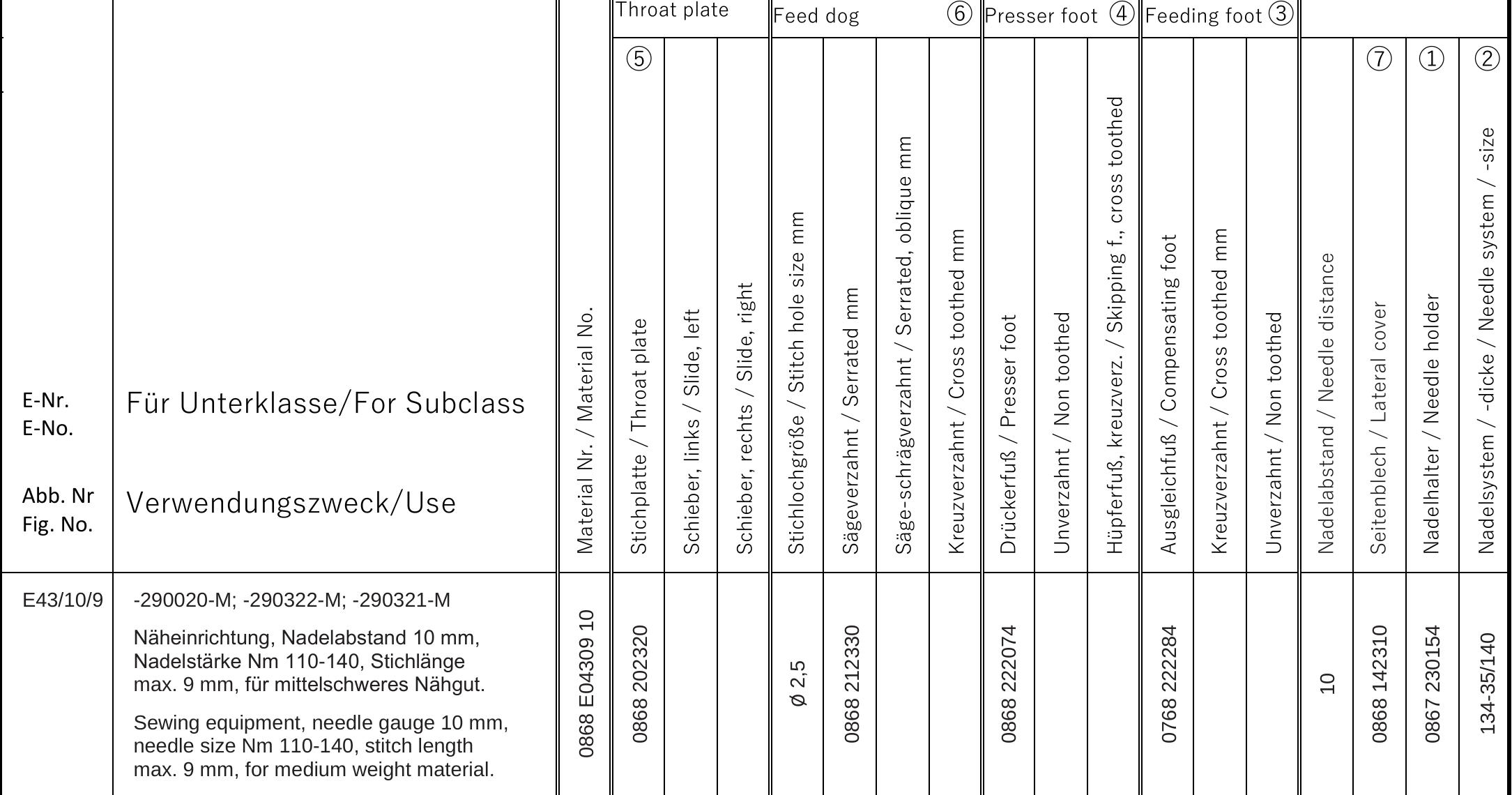

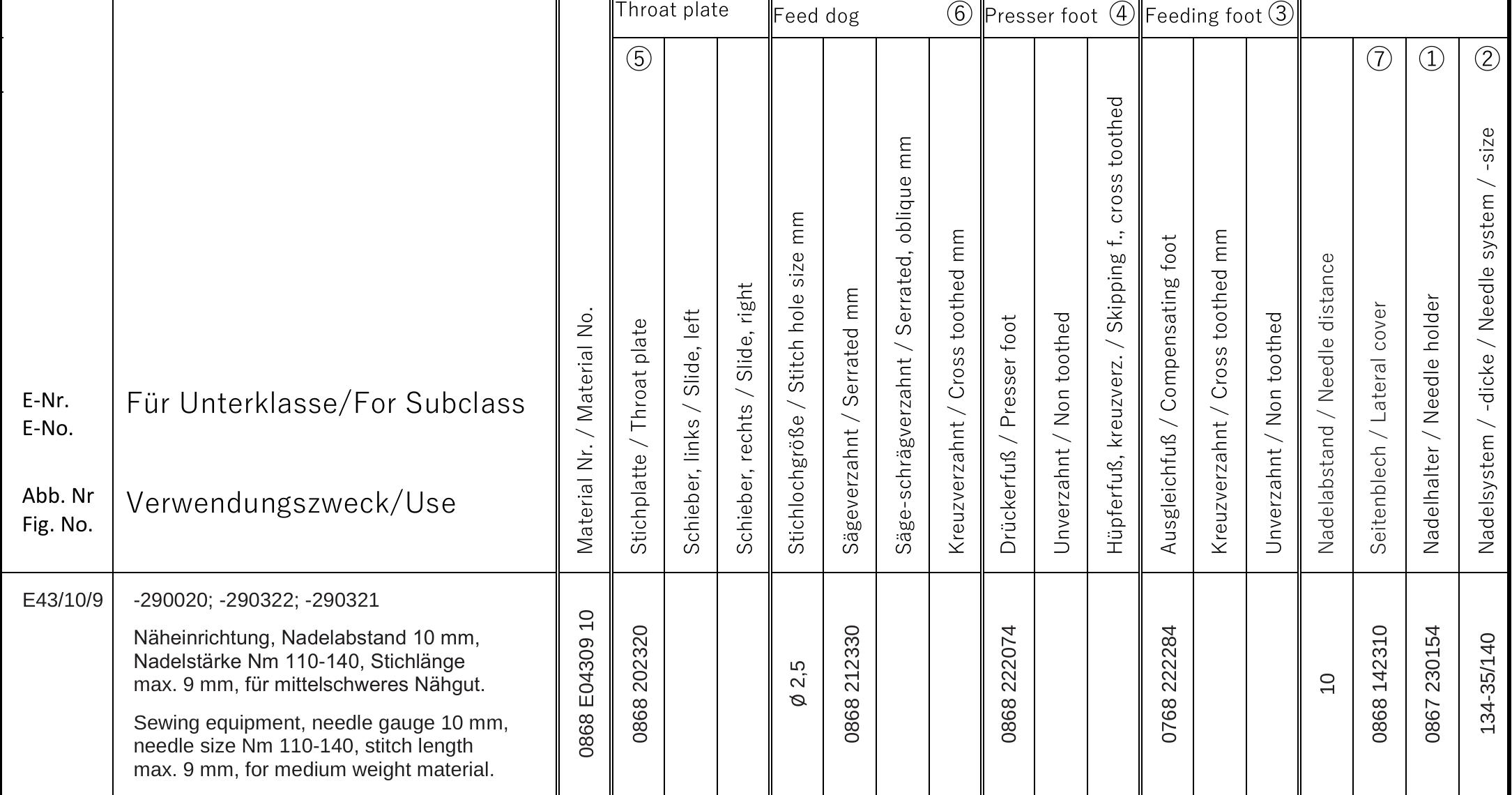

Diagrams and additional information

4

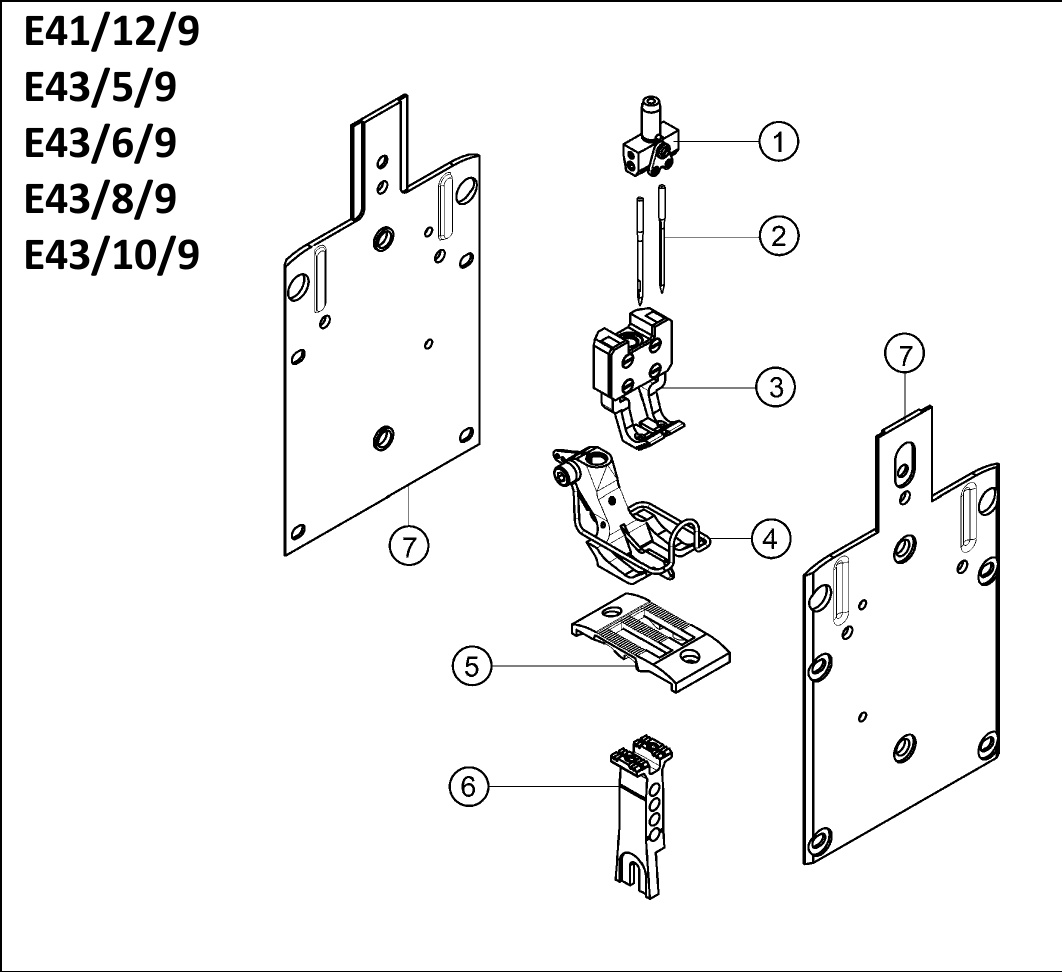

0868 E04309 10 · Schema — Diagram Open original ↗

0868 E04309 10 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0768 222284	Компенсационная лапка 0768 222284	236.74 EUR	→
0867 230154	0867 230154 — иглодержатель	189.74 EUR	→
0868 142310	0868 142310 — боковая пластина	77.27 EUR	→
0868 202320	0868 202320 — игольная пластина	80.55 EUR	→
0868 212330	0868 212330 — зубчатая рейка	94.22 EUR	→
0868 222074	0868 222074 — прижимная лапка	206.57 EUR	→

Compatible machine configurations

4

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 066) DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 083) DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 102) DÜRKOPP ADLER · 868 868-290020-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990207 030)
