0868 E03309 6 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 6 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 9 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 6 mm,
needle size Nm 110-140, stitch length
max. 9 mm, for medium weight material.

Node ID: E33/6/9
Compatible subclasses: 868, 868M
Material number: 0868 E03309 6

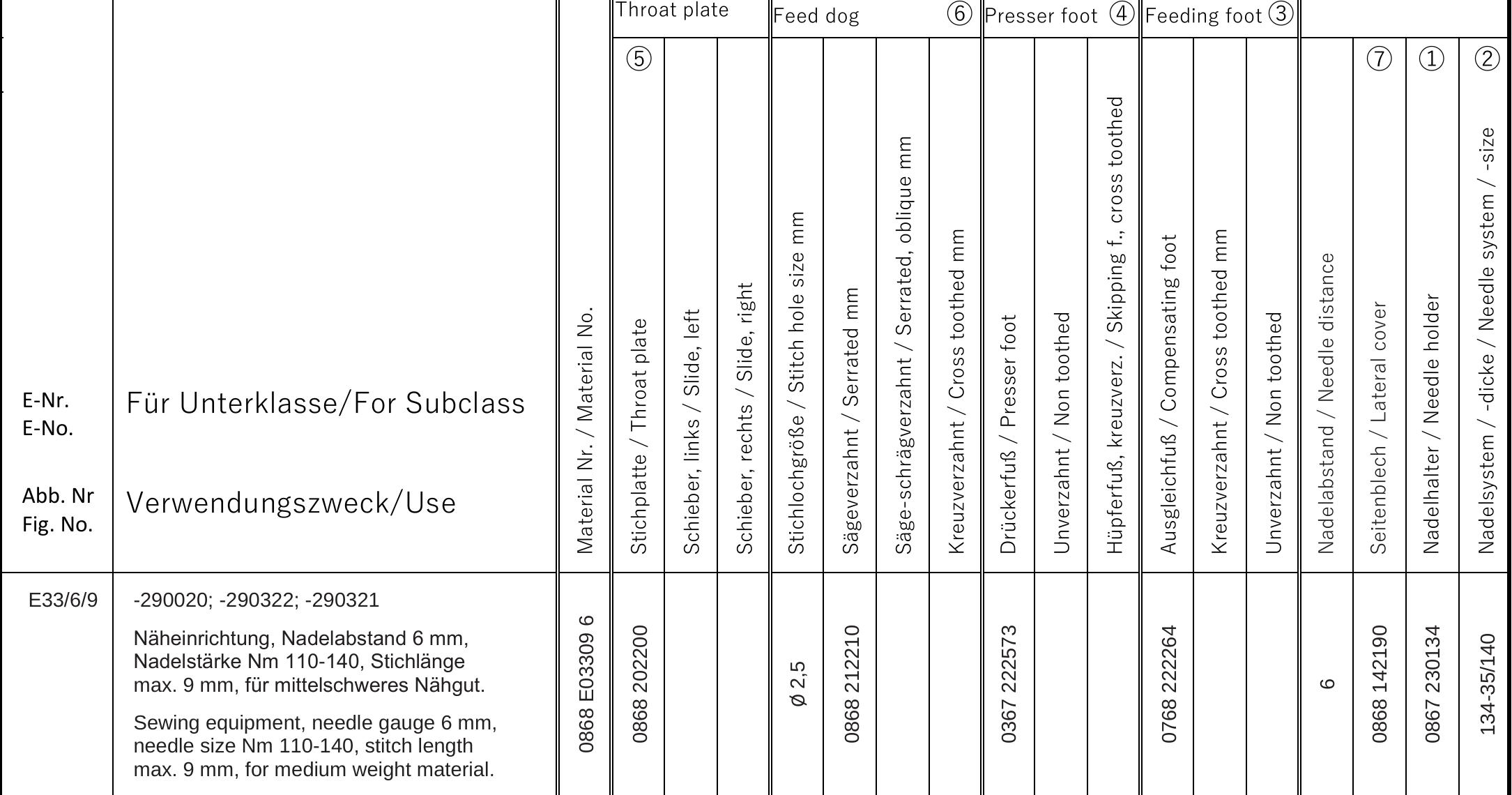

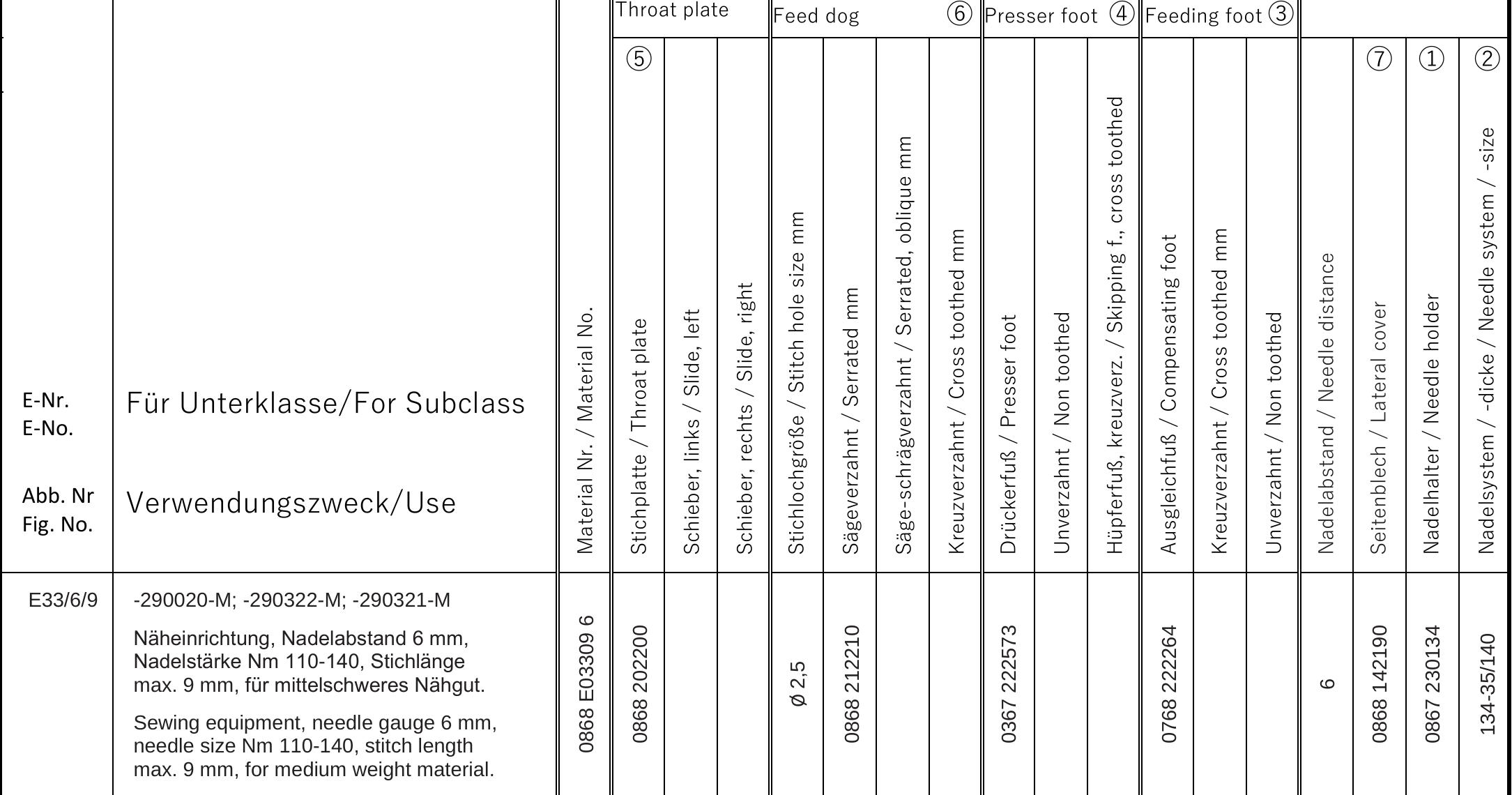

Diagrams and additional information

4

0868 E03309 6 · Schema — Diagram Open original ↗

0868 E03309 6 · Additional information — Additional information Open original ↗

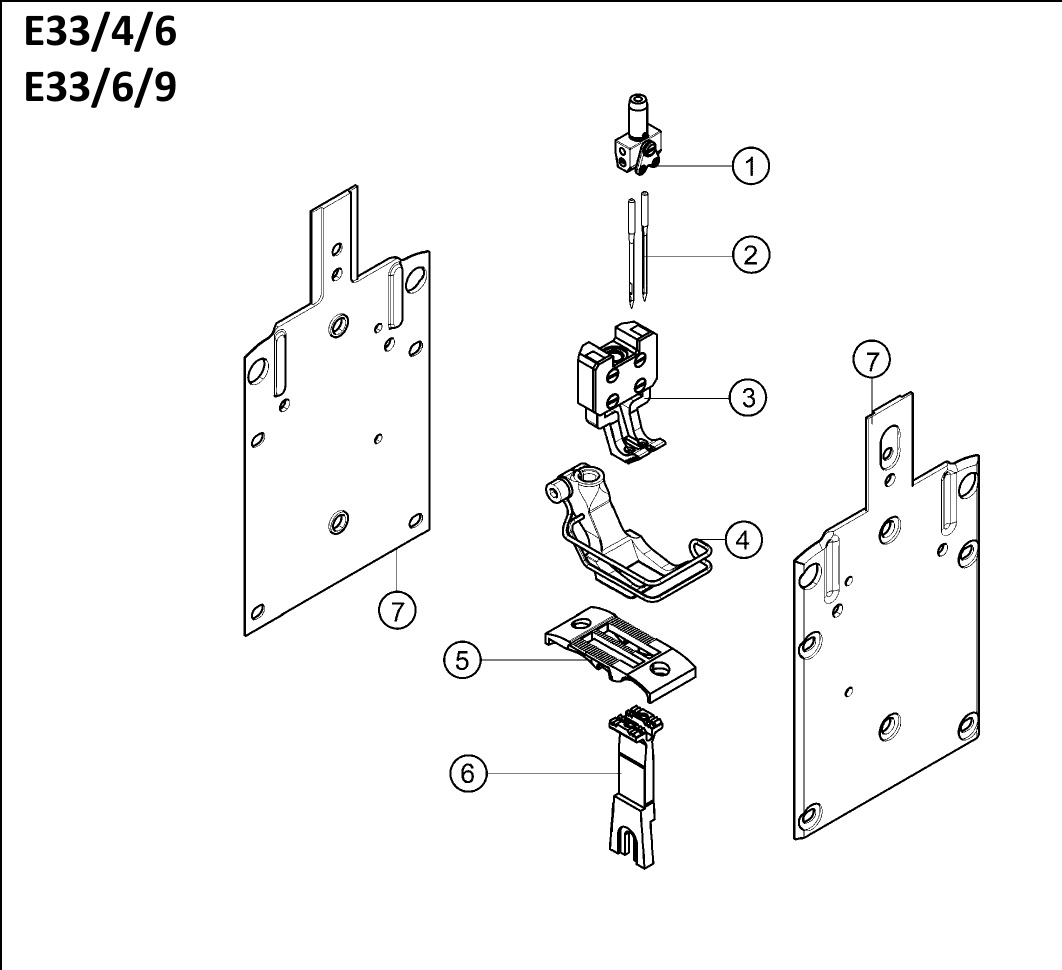

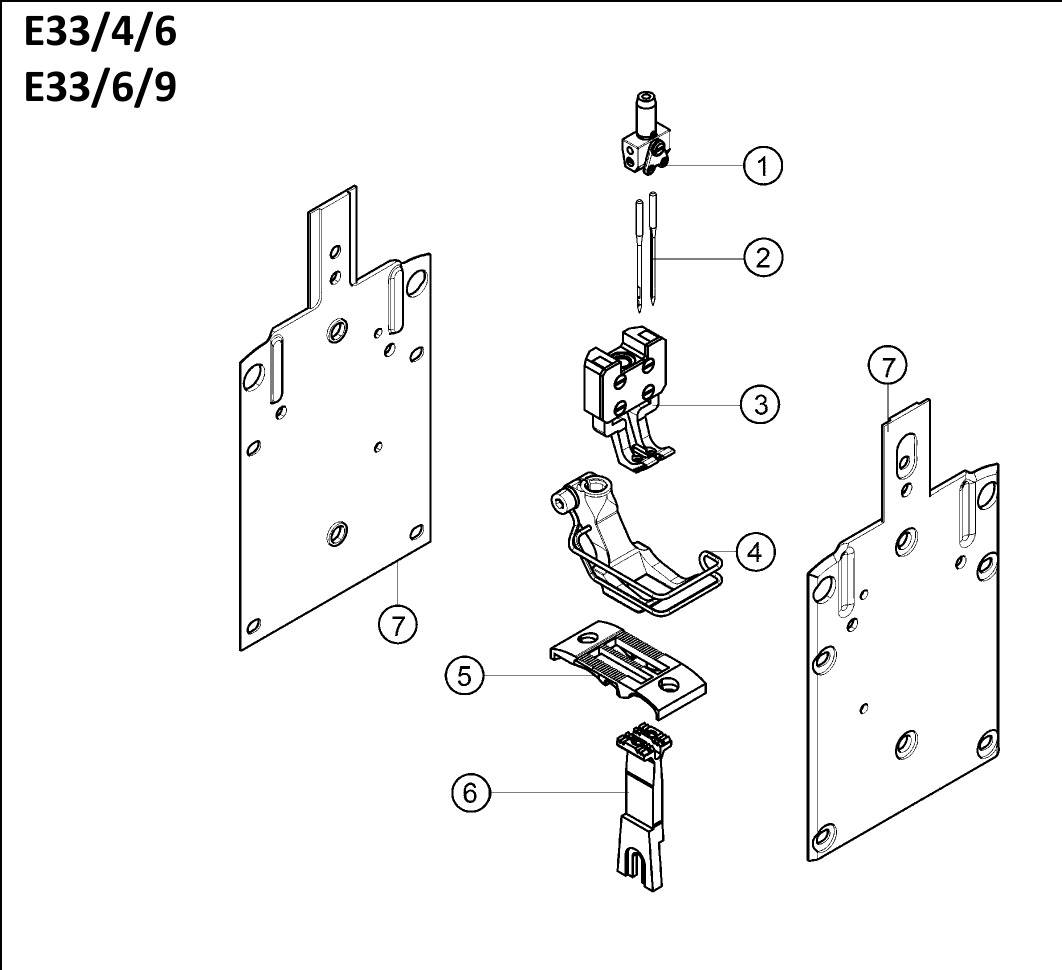

Included spare parts

6

Part number	Description	Price
0367 222573	0367 222573 — прижимная лапка	101.34 EUR	→
0768 222264	0768 222264 — компенсационная лапка	246.22 EUR	→
0867 230134	0867 230134 — иглодержатель	189.74 EUR	→
0868 142190	0868 142190 — боковая пластина	80.04 EUR	→
0868 202200	0868 202200 — игольная пластина	82.77 EUR	→
0868 212210	0868 212210 — зубчатая рейка	85.98 EUR	→

Compatible machine configurations

3

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 054) DÜRKOPP ADLER · 868 868-290020-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990207 005) DÜRKOPP ADLER · 868 868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 059)
