0868 E03306 4 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 4 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 6 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 4 mm,
needle size Nm 110-140, stitch length
max. 6 mm, for medium weight material.

Node ID: E33/4/6
Compatible subclasses: 868, 868M
Material number: 0868 E03306 4

Diagrams and additional information

4

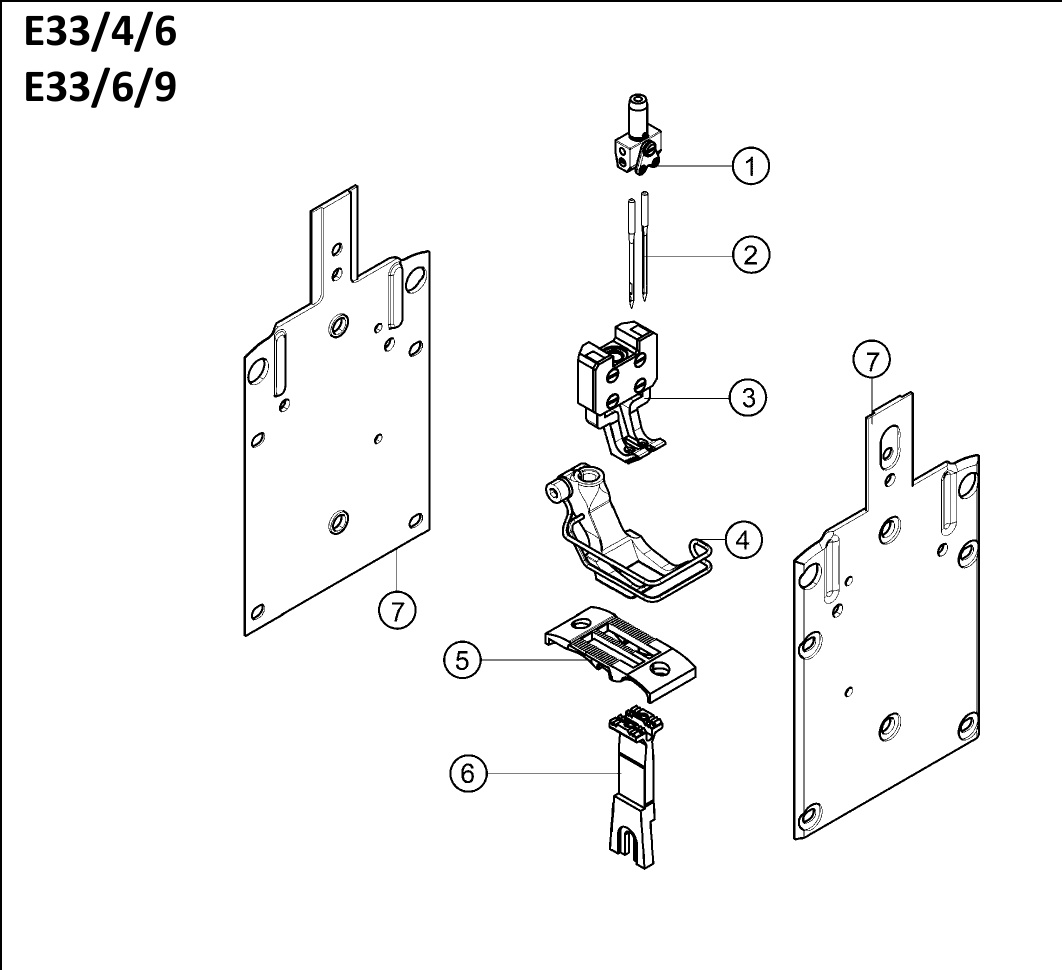

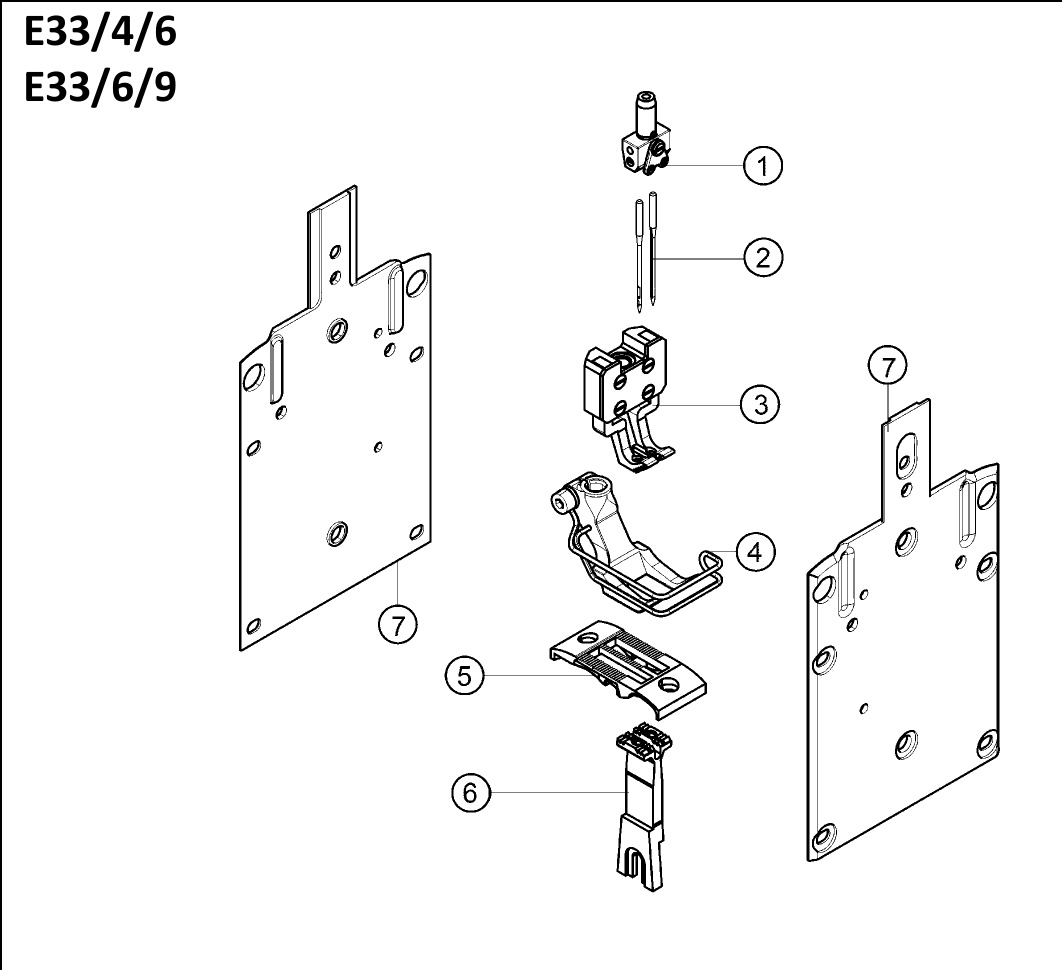

0868 E03306 4 · Schema — Diagram Open original ↗

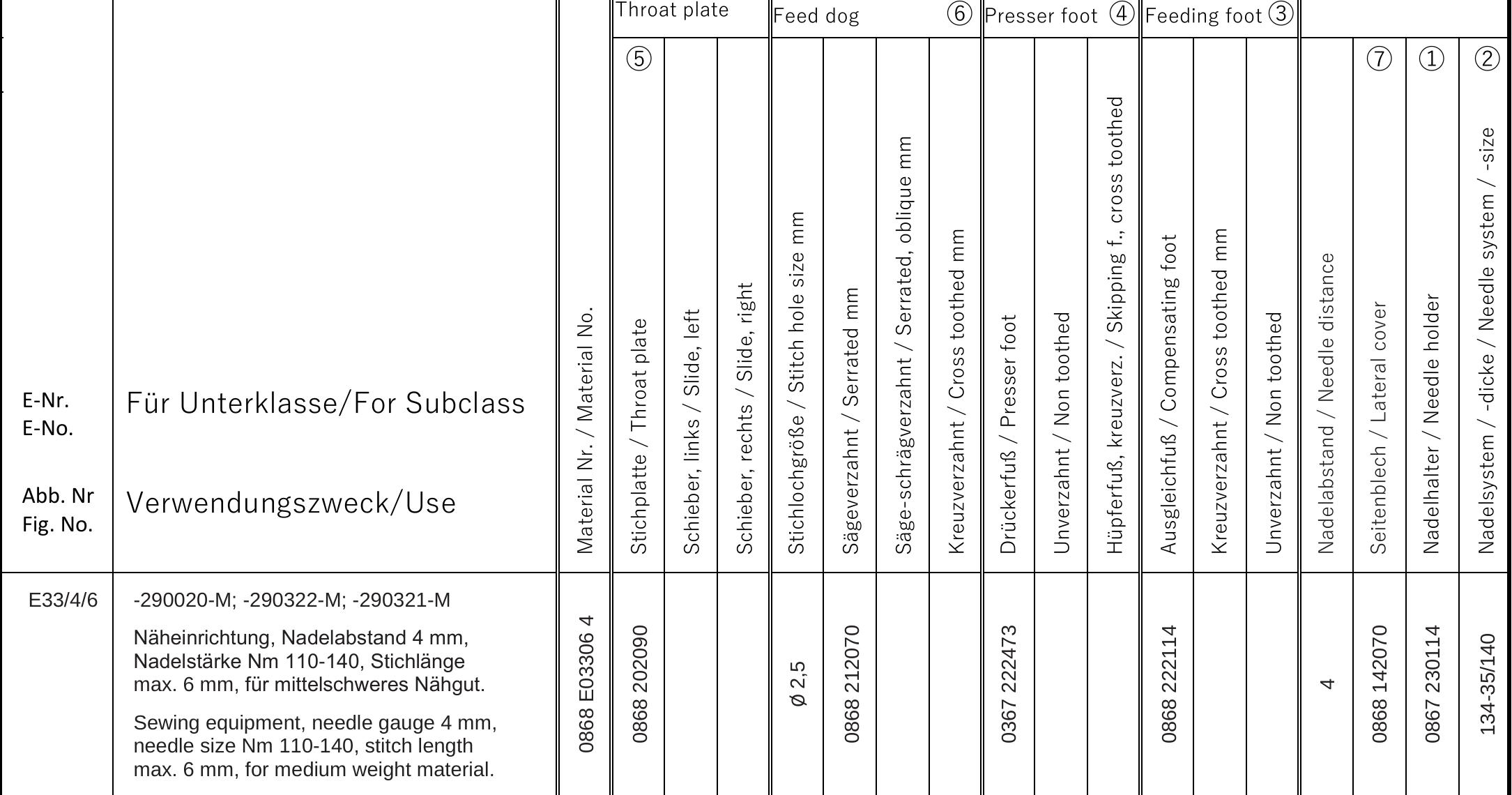

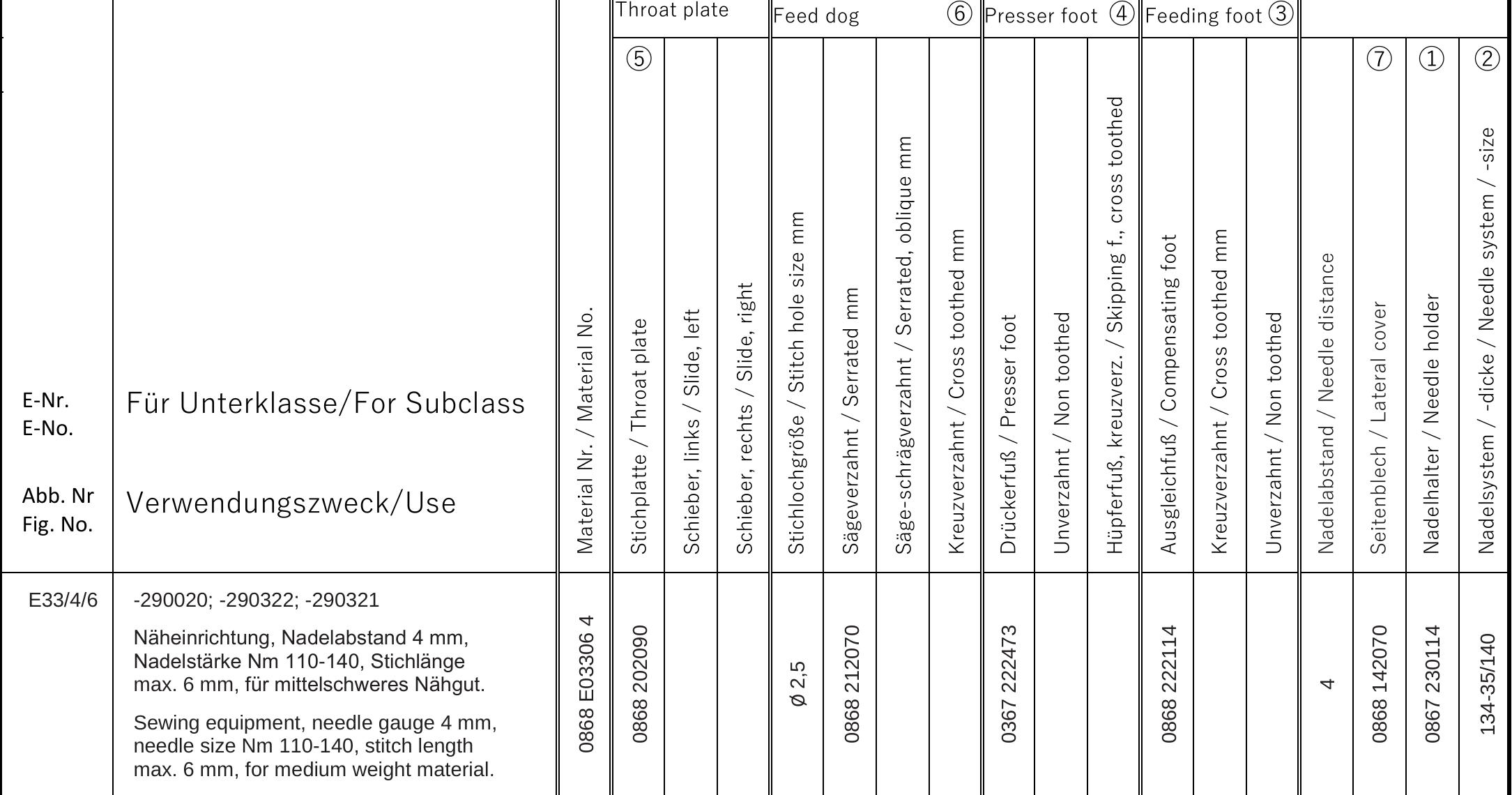

0868 E03306 4 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0367 222473	0367 222473 — прижимная лапка	92.05 EUR	→
0867 230114	0867 230114 — иглодержатель	189.74 EUR	→
0868 142070	0868 142070 — боковая пластина	97.19 EUR	→
0868 202090	0868 202090 — игольная пластина	95.38 EUR	→
0868 212070	0868 212070 — зубчатая рейка	123.33 EUR	→
0868 222114	0868 222114 — компенсационная лапка	276.84 EUR	→

Compatible machine configurations

1

DÜRKOPP ADLER · 868 868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 138)
