0868 E03112 14 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 14 mm,
Nadelstéarke Nm 140-180, Stichlange
max. 12 mm, fir mittelschweres Nahgut

Sewing equipment, needle gauge 14 mm,
needle size Nm 140-180, stitch length
max. 12 mm, for medium weight material.

Node ID: E31/14/12
Compatible subclasses: 868, 868M
Material number: 0868 E03112 14

Diagrams and additional information

4

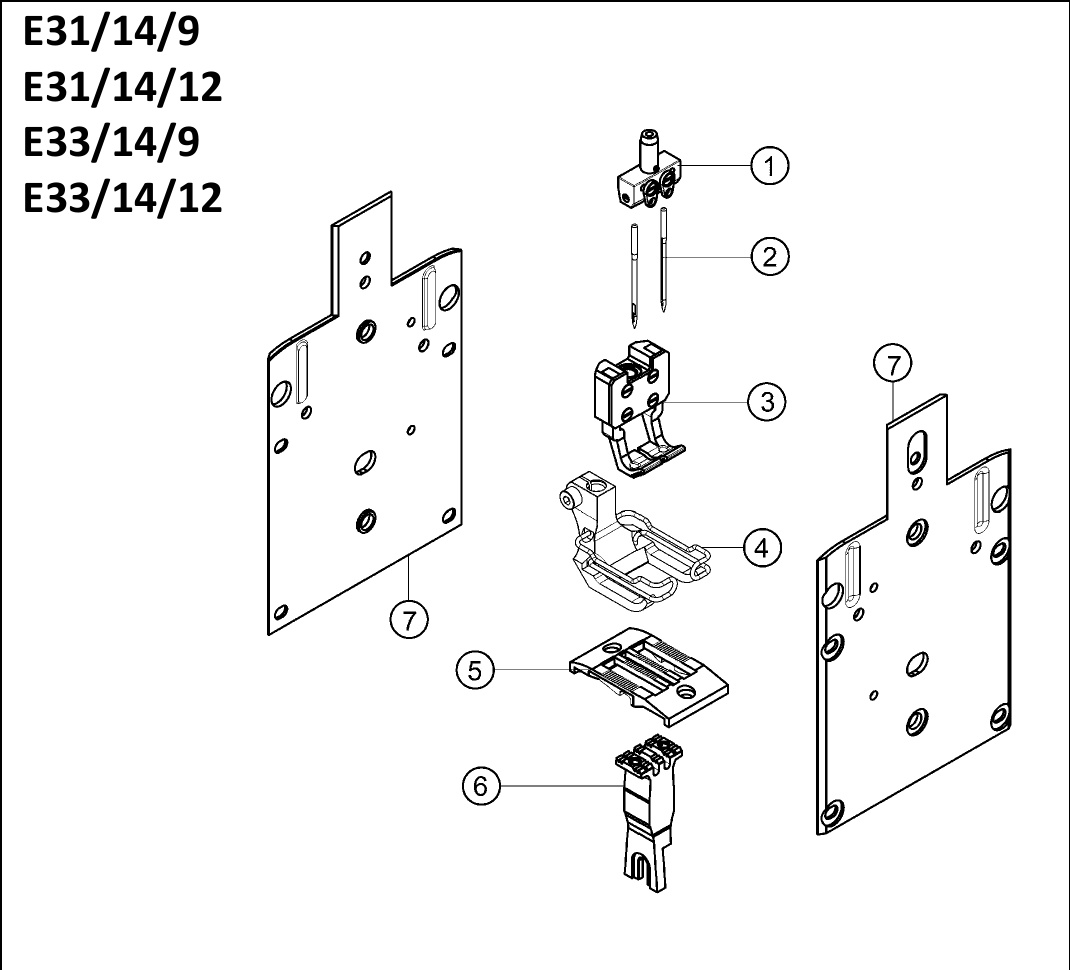

0868 E03112 14 · Schema — Diagram Open original ↗

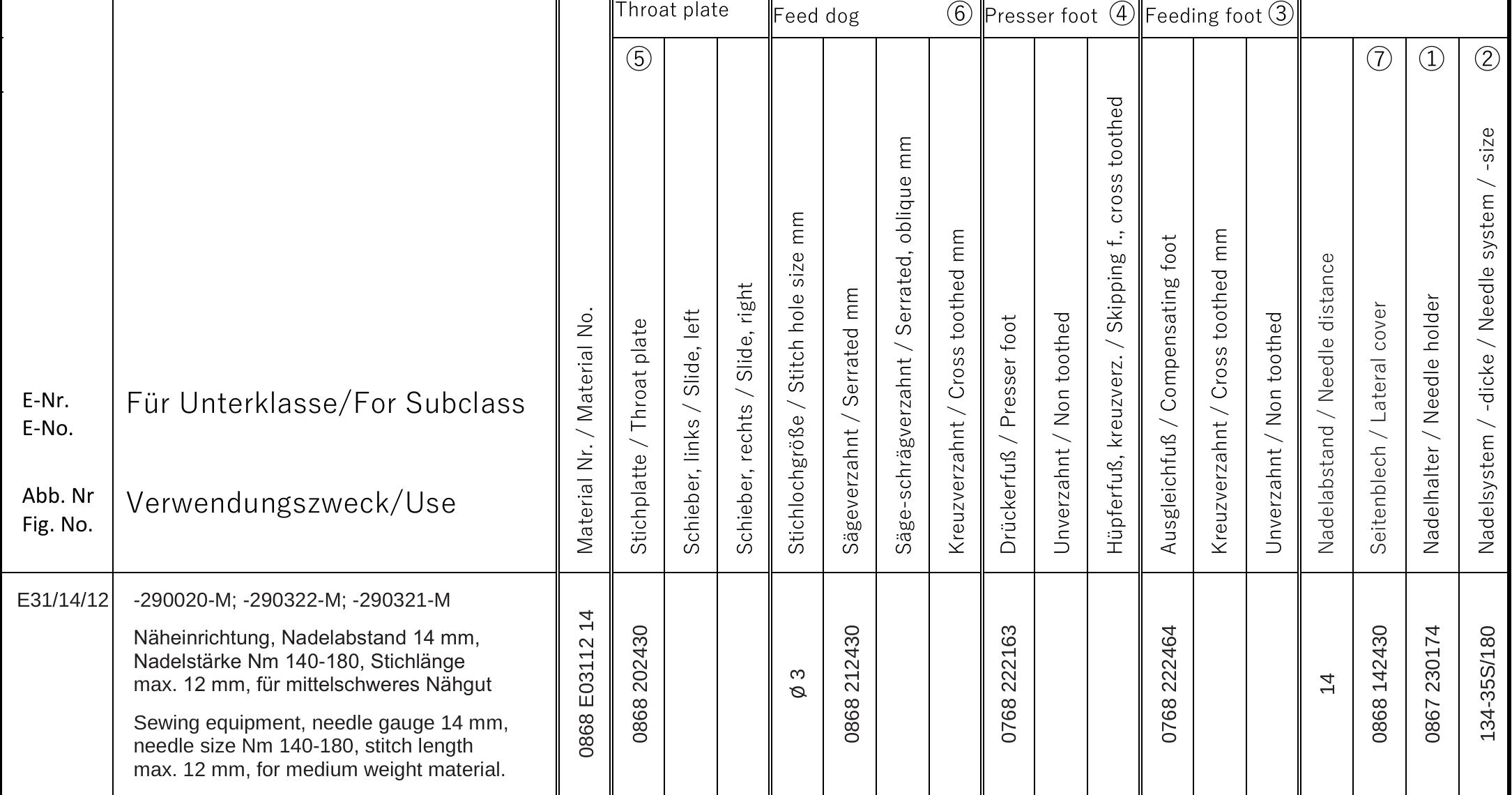

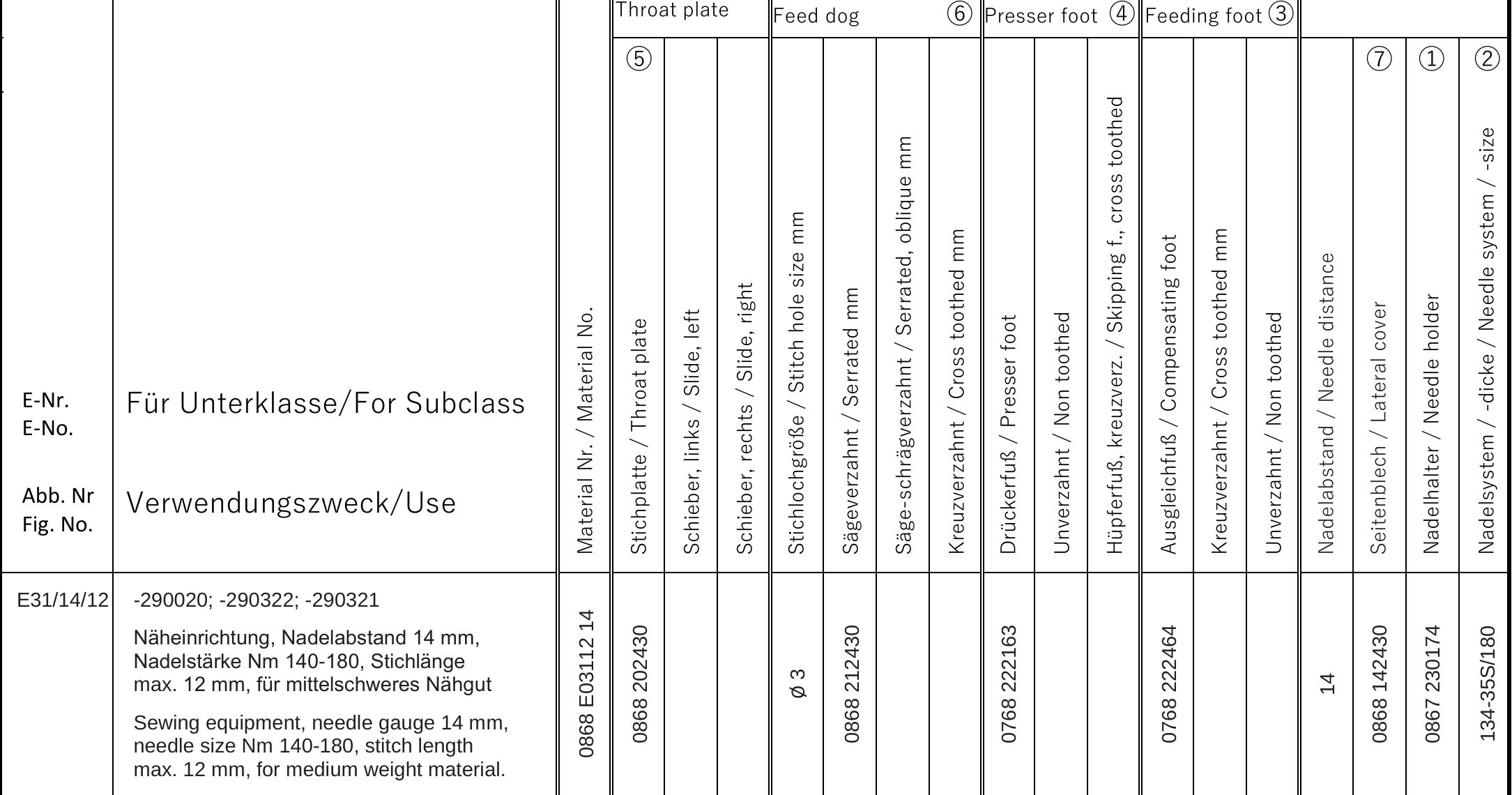

0868 E03112 14 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0768 222163	0768 222163 — прыгающая лапка	123.71 EUR	→
0768 222464	0768 222464 — компенсационная лапка	259.10 EUR	→
0867 230174	0867 230174 — иглодержатель	195.26 EUR	→
0868 142430	0868 142430 — боковая пластина	82.21 EUR	→
0868 202430	0868 202430 — игольная пластина	74.26 EUR	→
0868 212430	0868 212430 — зубчатая рейка	86.70 EUR	→

Compatible machine configurations

2

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 004) DÜRKOPP ADLER · 868 868-290020-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990207 025)
