DÜRKOPP ADLER · CLASS 868 · E31/14/9

0868 E03109 14

Complete E-equipment card

6parts 0configurations 4documents

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 14 mm,
Nadelstéarke Nm 140-180, Stichlange
max. 9 mm, fir mittelschweres Nahgut

Sewing equipment, needle gauge 14 mm,
needle size Nm 140-180, stitch length
max. 9 mm, for medium weight material.

Node ID: E31/14/9
Compatible subclasses: 868, 868M
Material number: 0868 E03109 14

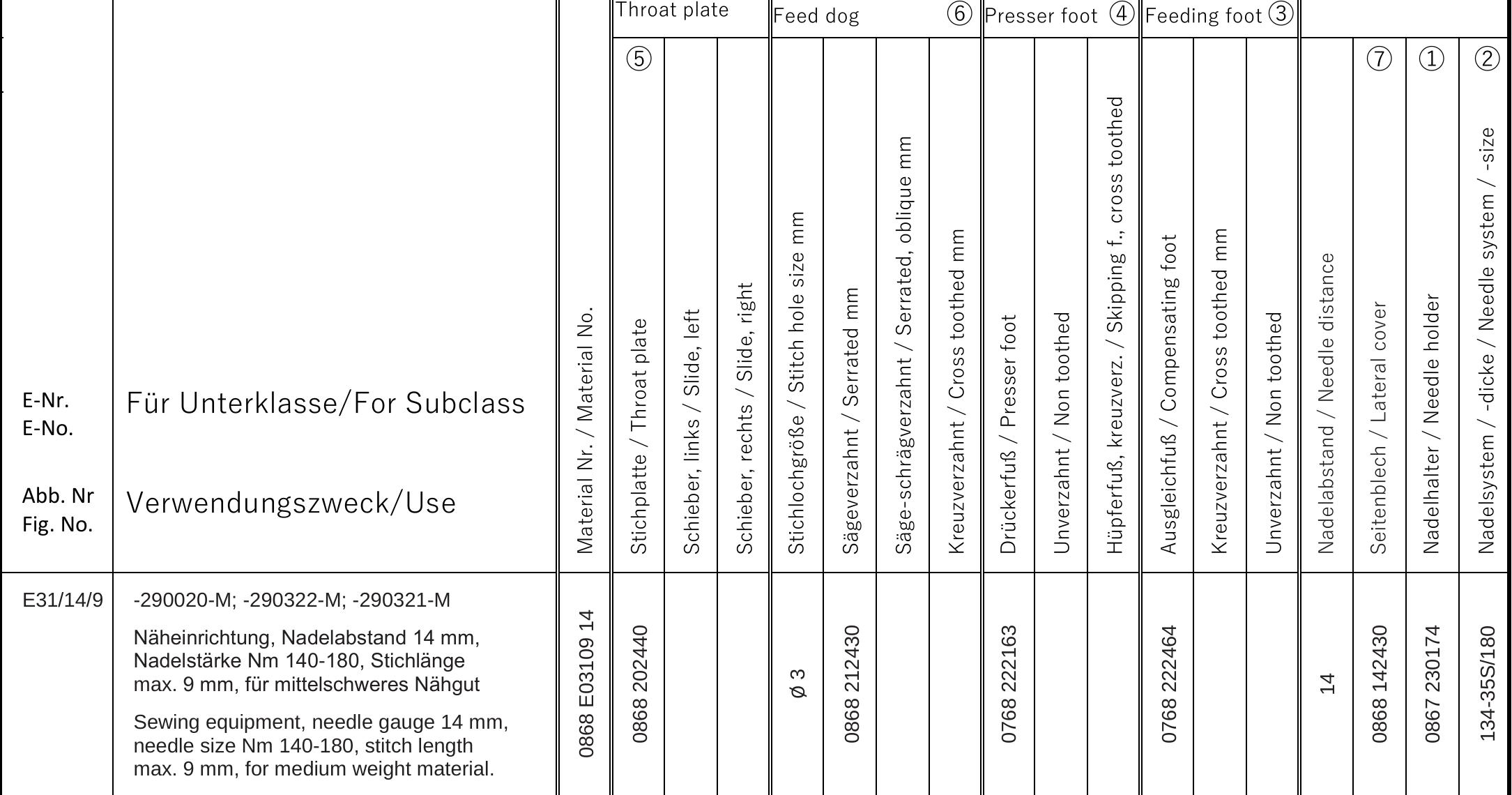

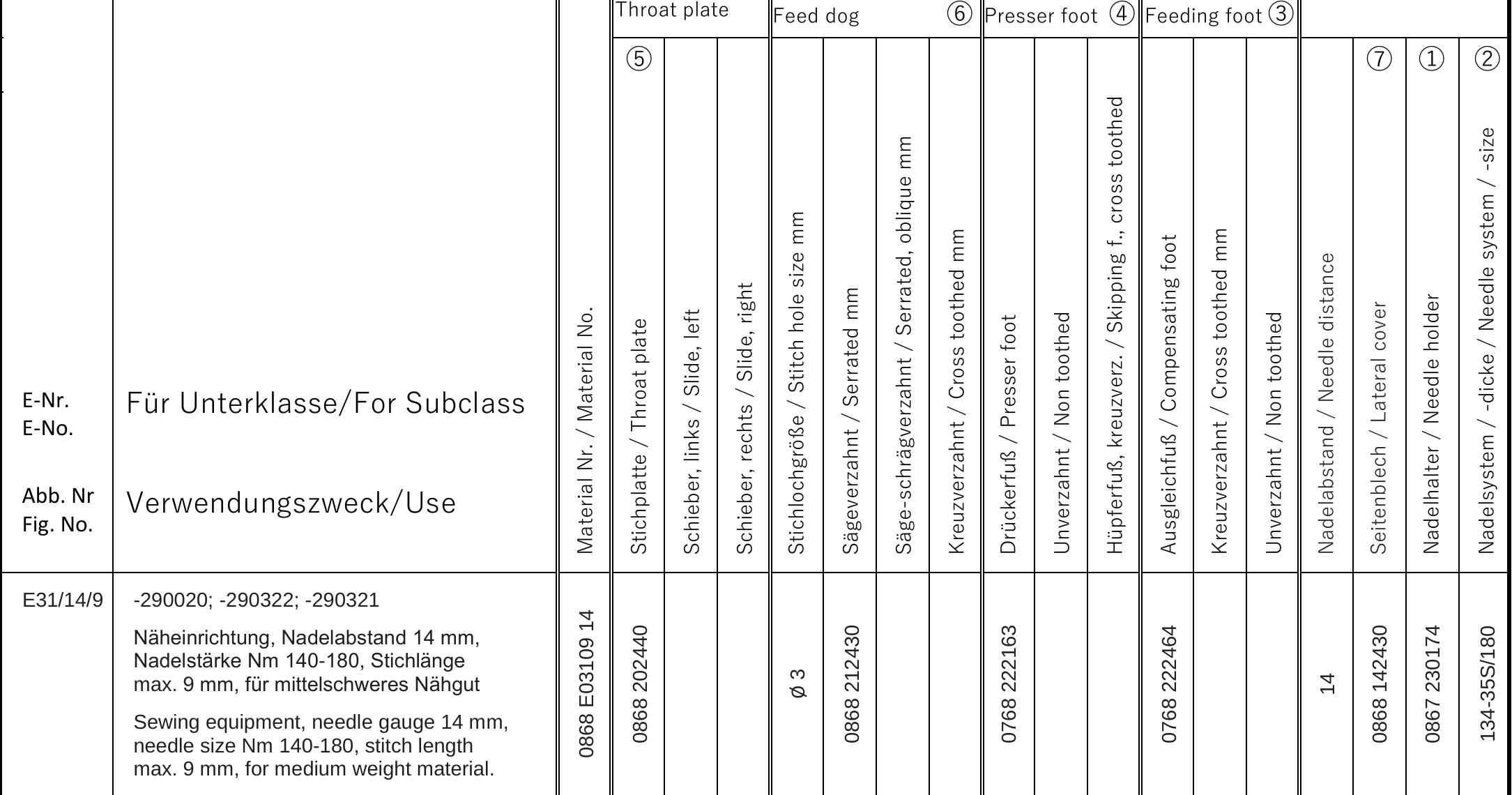

Diagrams and additional information

0868 E03109 14 · Schema — Diagram Open original ↗

0868 E03109 14 · Additional information — Additional information Open original ↗

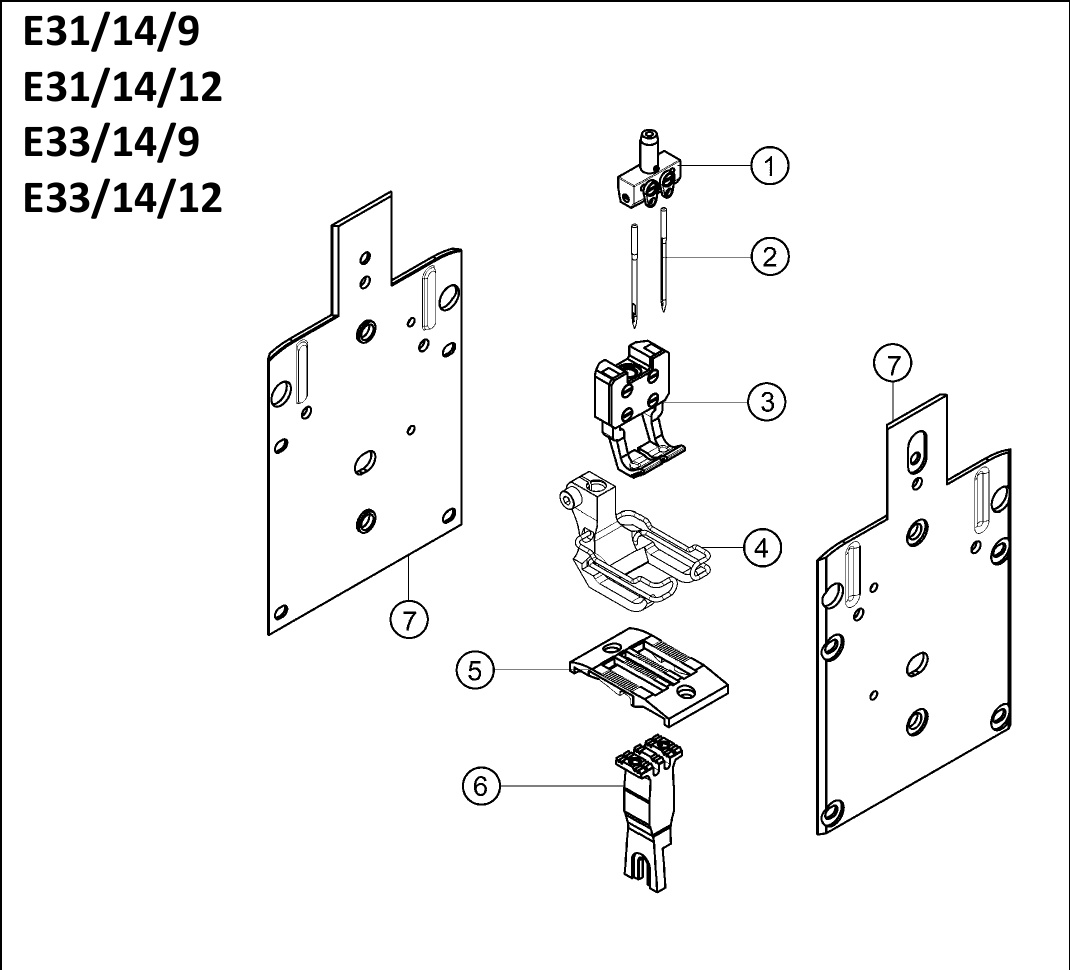

Included spare parts

Part number	Description	Price
0768 222163	0768 222163 — прыгающая лапка	123.71 EUR	→
0768 222464	0768 222464 — компенсационная лапка	259.10 EUR	→
0867 230174	0867 230174 — иглодержатель	195.26 EUR	→
0868 142430	0868 142430 — боковая пластина	82.21 EUR	→
0868 202440	0868 202440 — игольная пластина	71.27 EUR	→
0868 212430	0868 212430 — зубчатая рейка	86.70 EUR	→

Compatible machine configurations

This E-equipment is not included in the current BUNDE machine configurations.
