0868 E02506 3 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 3 mm,
Nadelstéarke Nm 110-120, Stichlange
max. 6 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 3 mm,
needle size Nm 110-120, stitch length
max. 6 mm, for medium weight material.

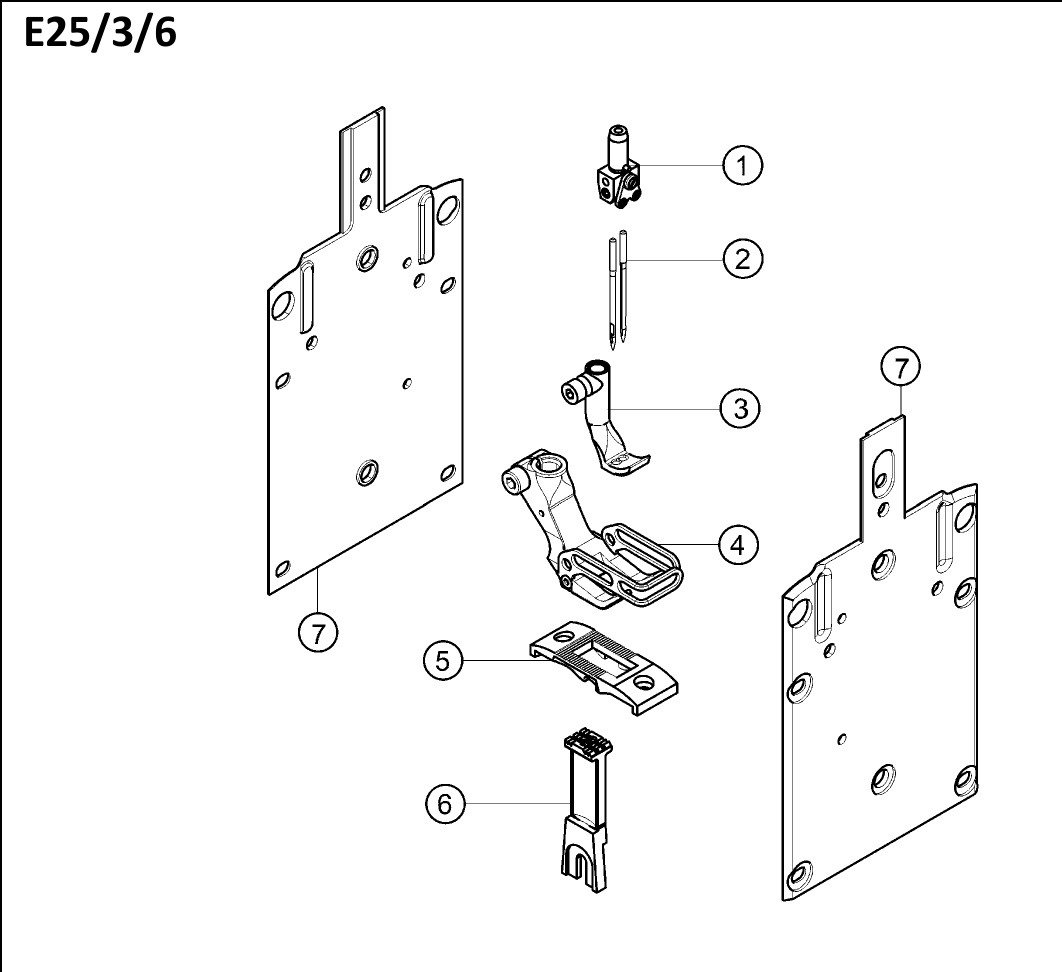

Node ID: E25/3/6
Compatible subclasses: 868, 868M
Material number: 0868 E02506 3

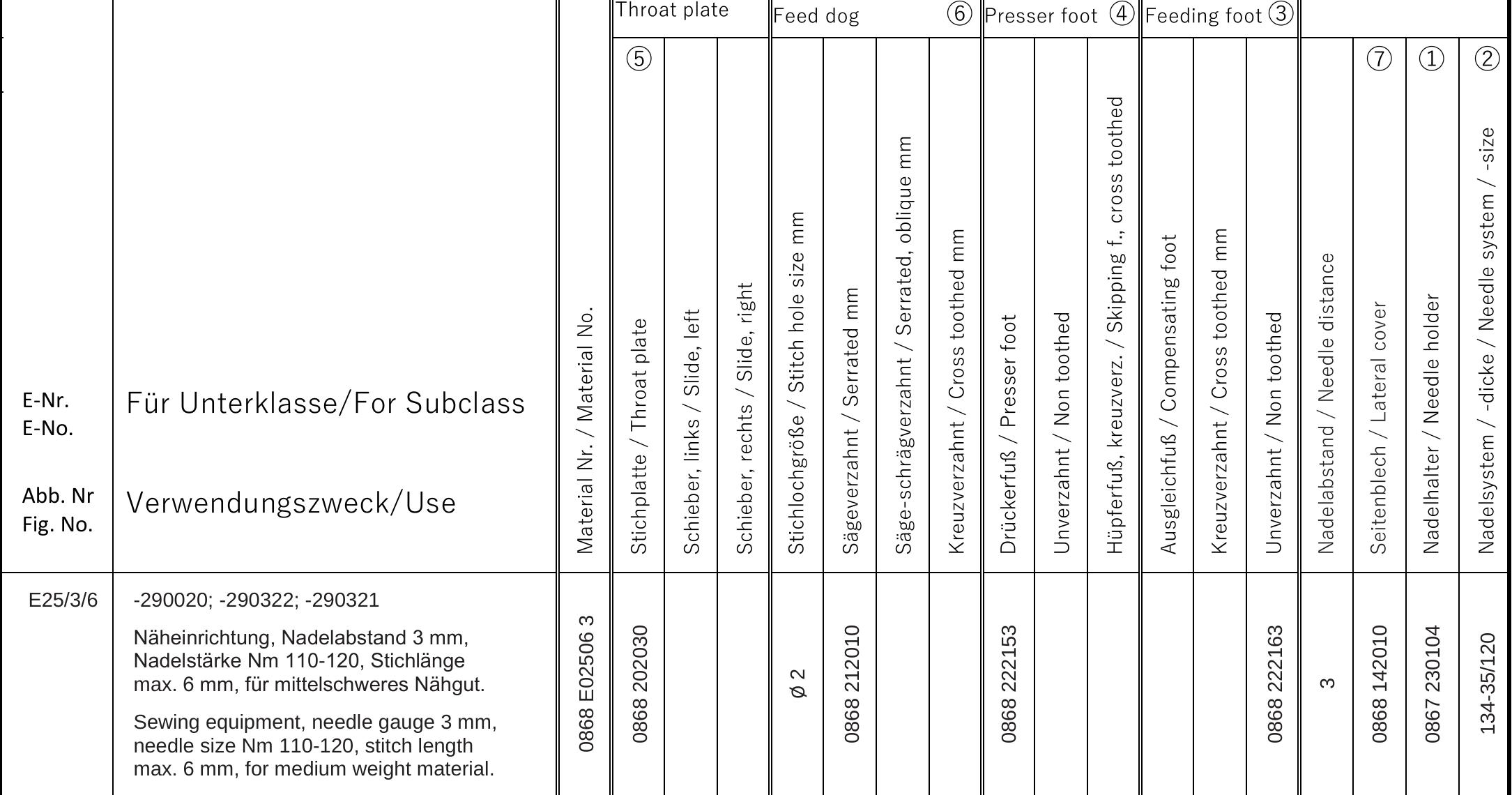

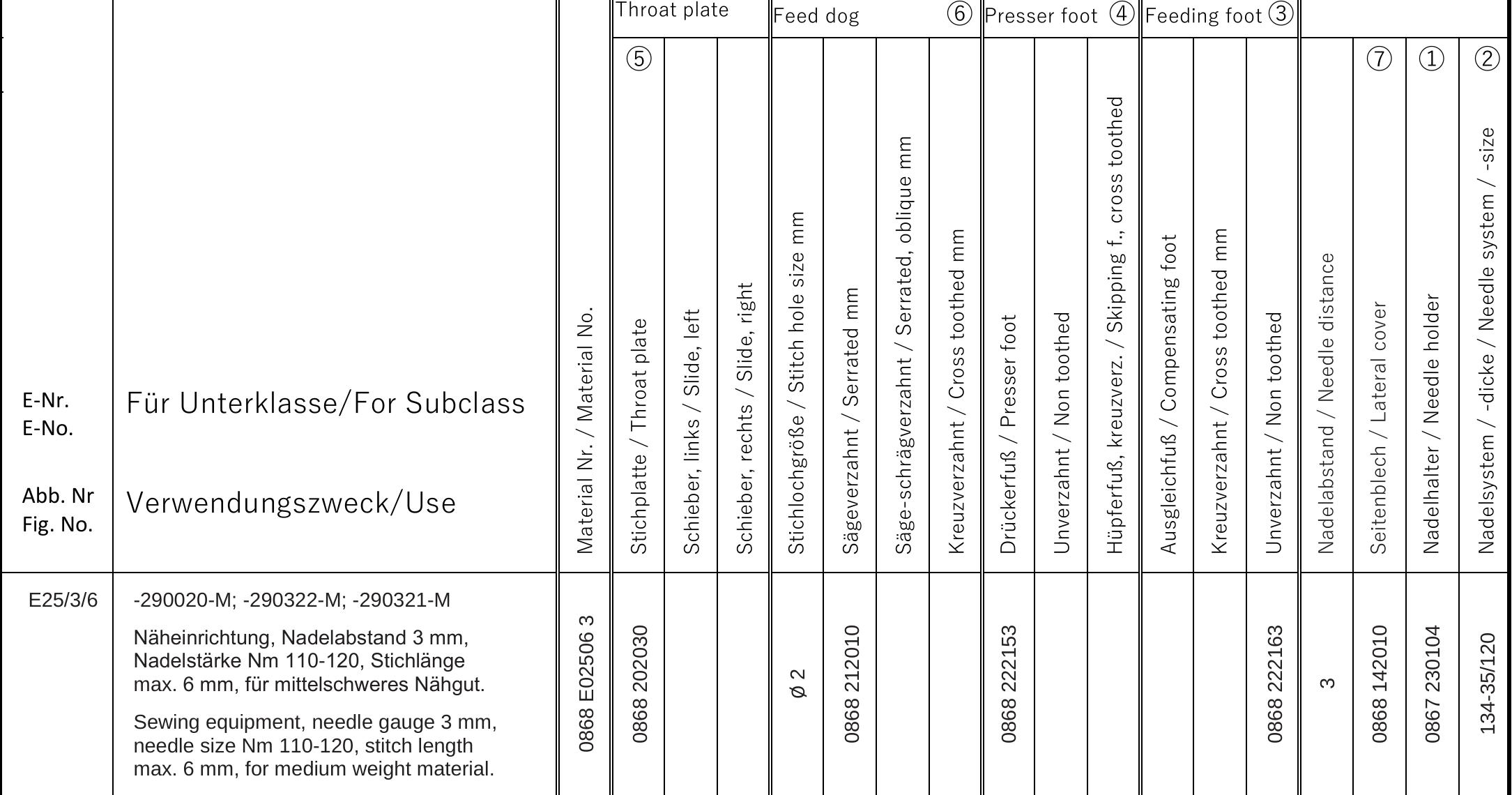

Diagrams and additional information

4

0868 E02506 3 · Schema — Diagram Open original ↗

0868 E02506 3 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0867 230104	0867 230104 — иглодержатель	189.74 EUR	→
0868 142010	0868 142010 — боковая пластина	93.80 EUR	→
0868 202030	0868 202030 — игольная пластина	103.06 EUR	→
0868 212010	0868 212010 — зубчатая рейка	90.17 EUR	→
0868 222153	0868 222153 — прижимная лапка	79.08 EUR	→
0868 222163	0868 222163 — лапка	65.95 EUR	→

Compatible machine configurations

1

DÜRKOPP ADLER · 868 868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 133)
