DÜRKOPP ADLER · CLASS 868 · E25/2/6

0868 E02506 2

Complete E-equipment card

6parts 0configurations 4documents

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 2 mm,
Nadelstéarke Nm 110-120, Stichlange
max. 6 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 2 mm,
needle size Nm 110-120, stitch length
max. 6 mm, for medium weight material.

Node ID: E25/2/6
Compatible subclasses: 868, 868M
Material number: 0868 E02506 2

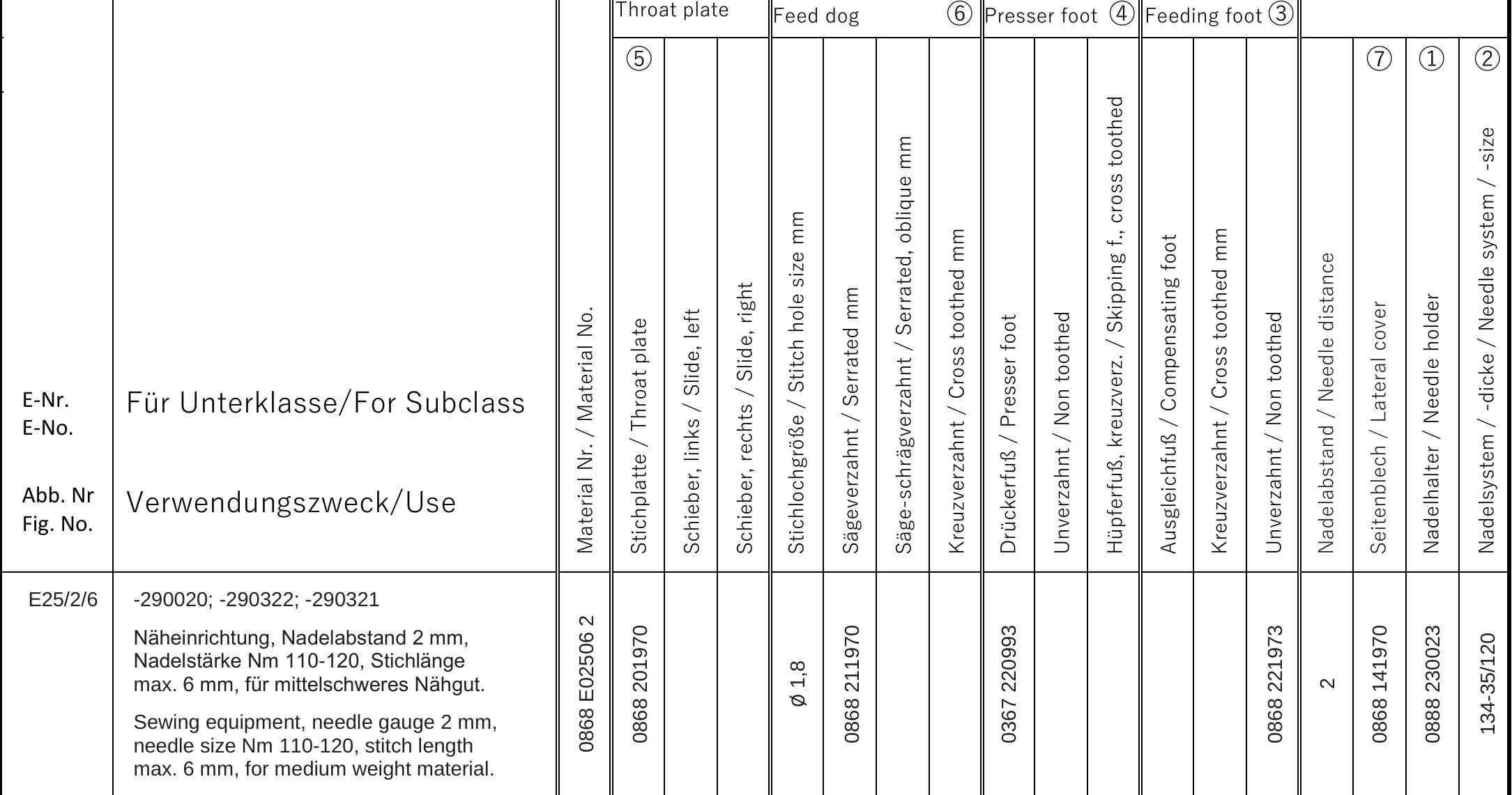

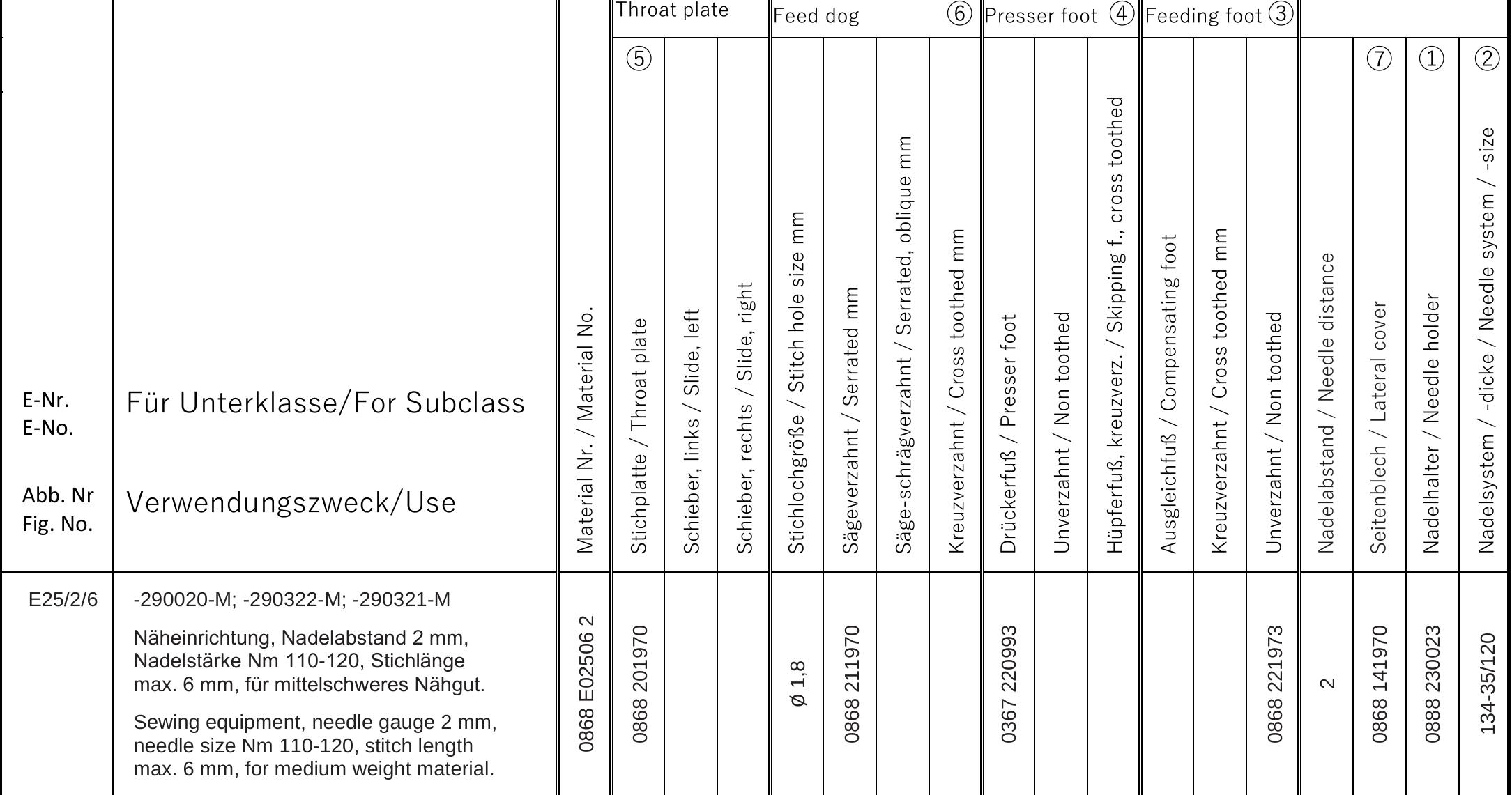

Diagrams and additional information

0868 E02506 2 · Schema — Diagram Open original ↗

0868 E02506 2 · Additional information — Additional information Open original ↗

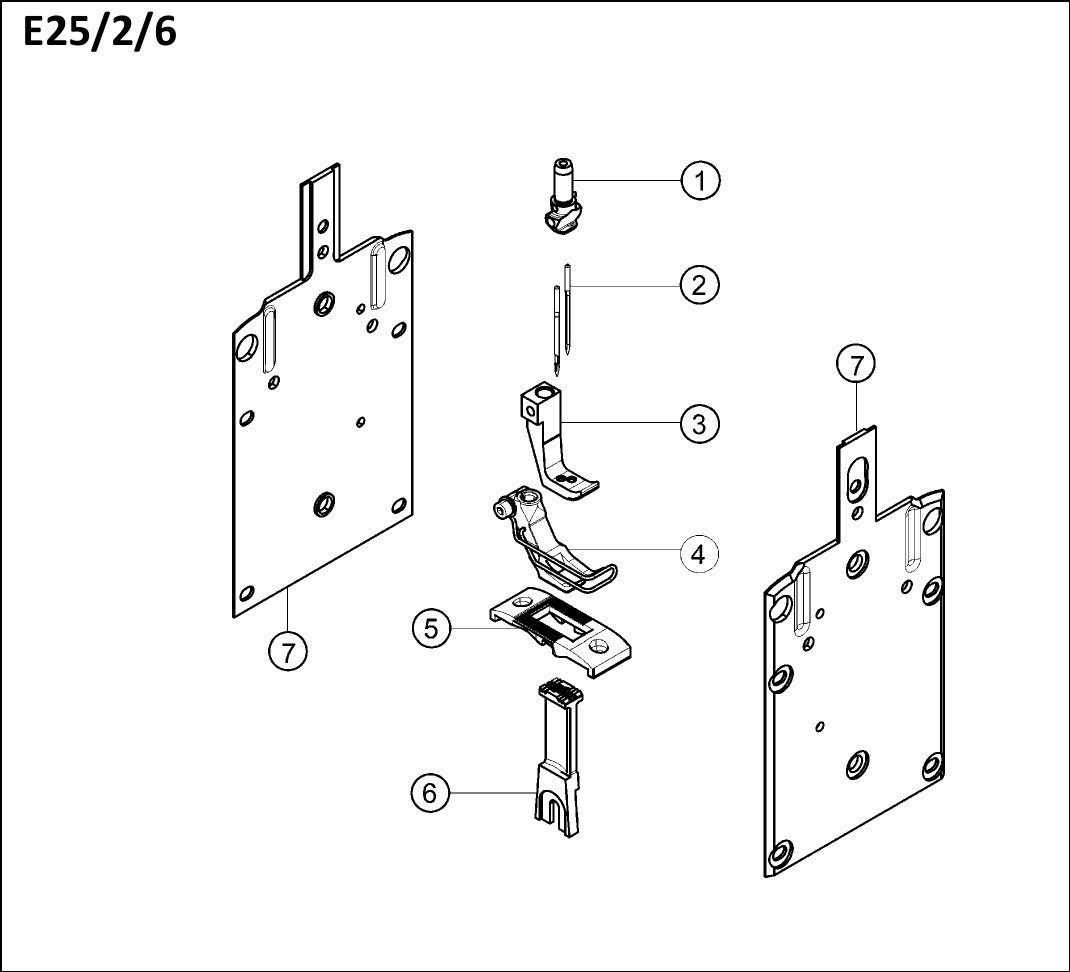

Included spare parts

Part number	Description	Price
0367 220993	0367 220993 — ПРИЖИМНАЯ ЛАПКА	59.63 EUR	→
0868 141970	0868 141970 — боковая пластина	137.66 EUR	→
0868 201970	0868 201970 — игольная пластина	90.13 EUR	→
0868 211970	0868 211970 — зубчатая рейка	99.71 EUR	→
0868 221973	0868 221973 — лапка	59.90 EUR	→
0888 230023	0888 230023 — иглодержатель	35.59 EUR	→

Compatible machine configurations

This E-equipment is not included in the current BUNDE machine configurations.
