0868 E02312 8 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 8 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 12 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 8 mm,
needle size Nm 110-140, stitch length
max. 12 mm, for medium weight material.

Node ID: E23/8/12
Compatible subclasses: 868, 868M
Material number: 0868 E02312 8

Diagrams and additional information

4

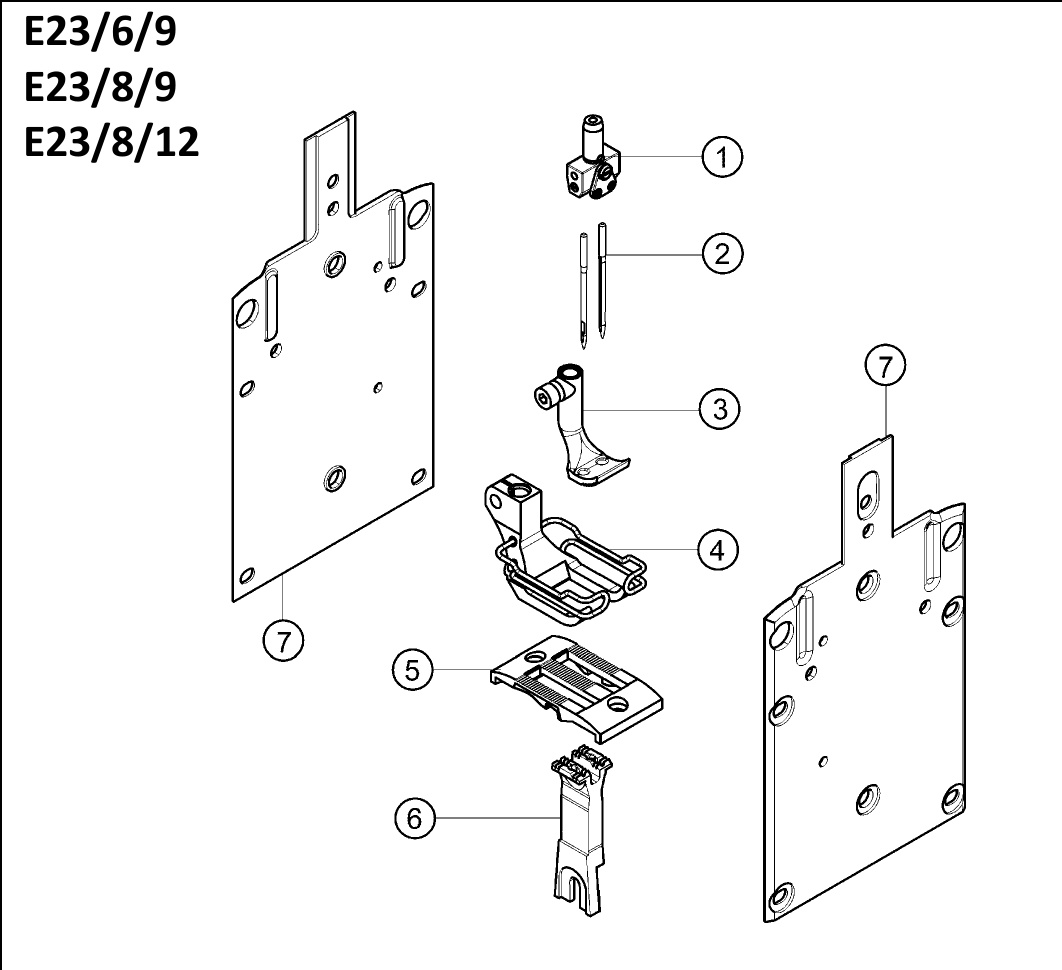

0868 E02312 8 · Schema — Diagram Open original ↗

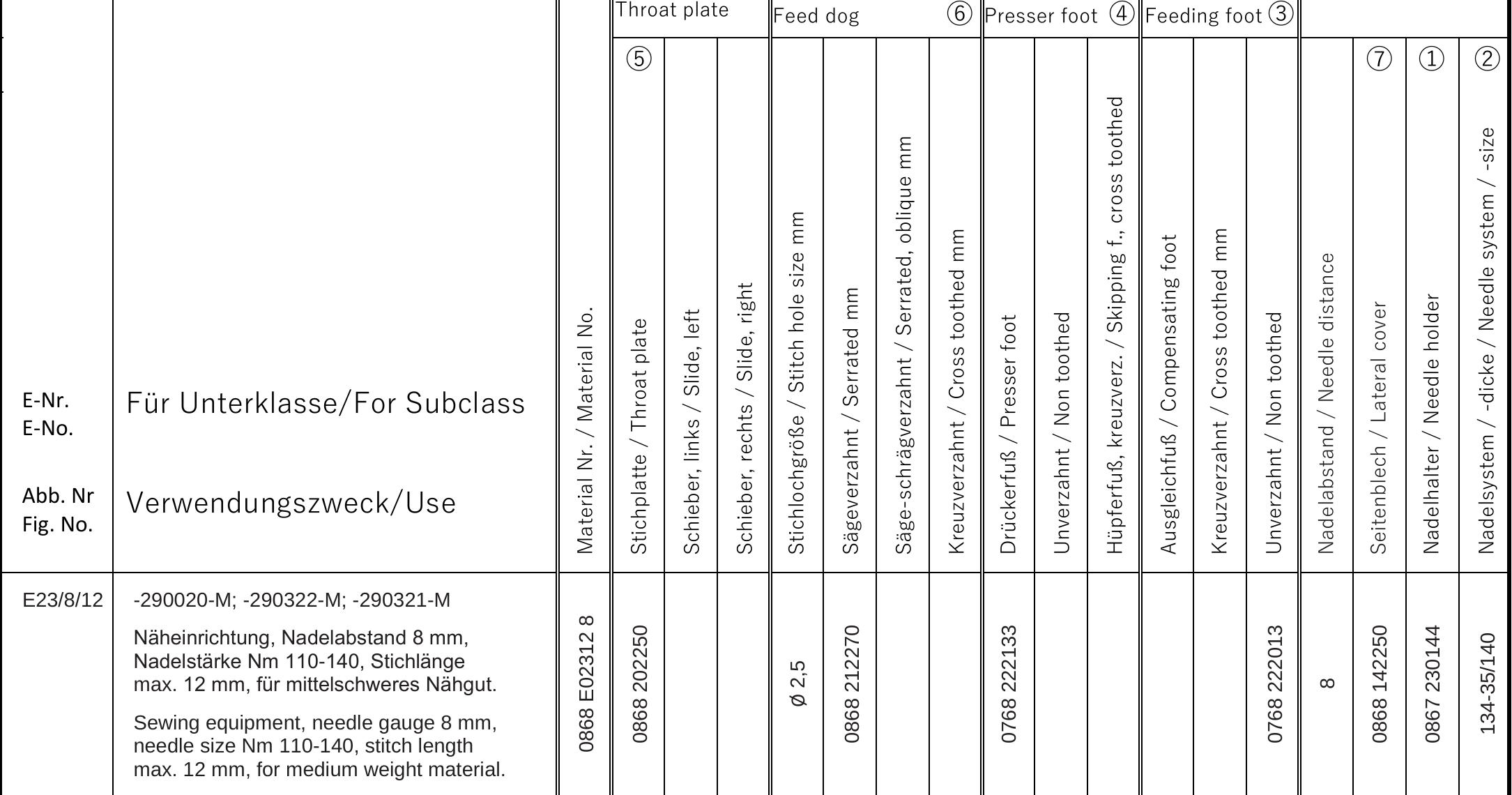

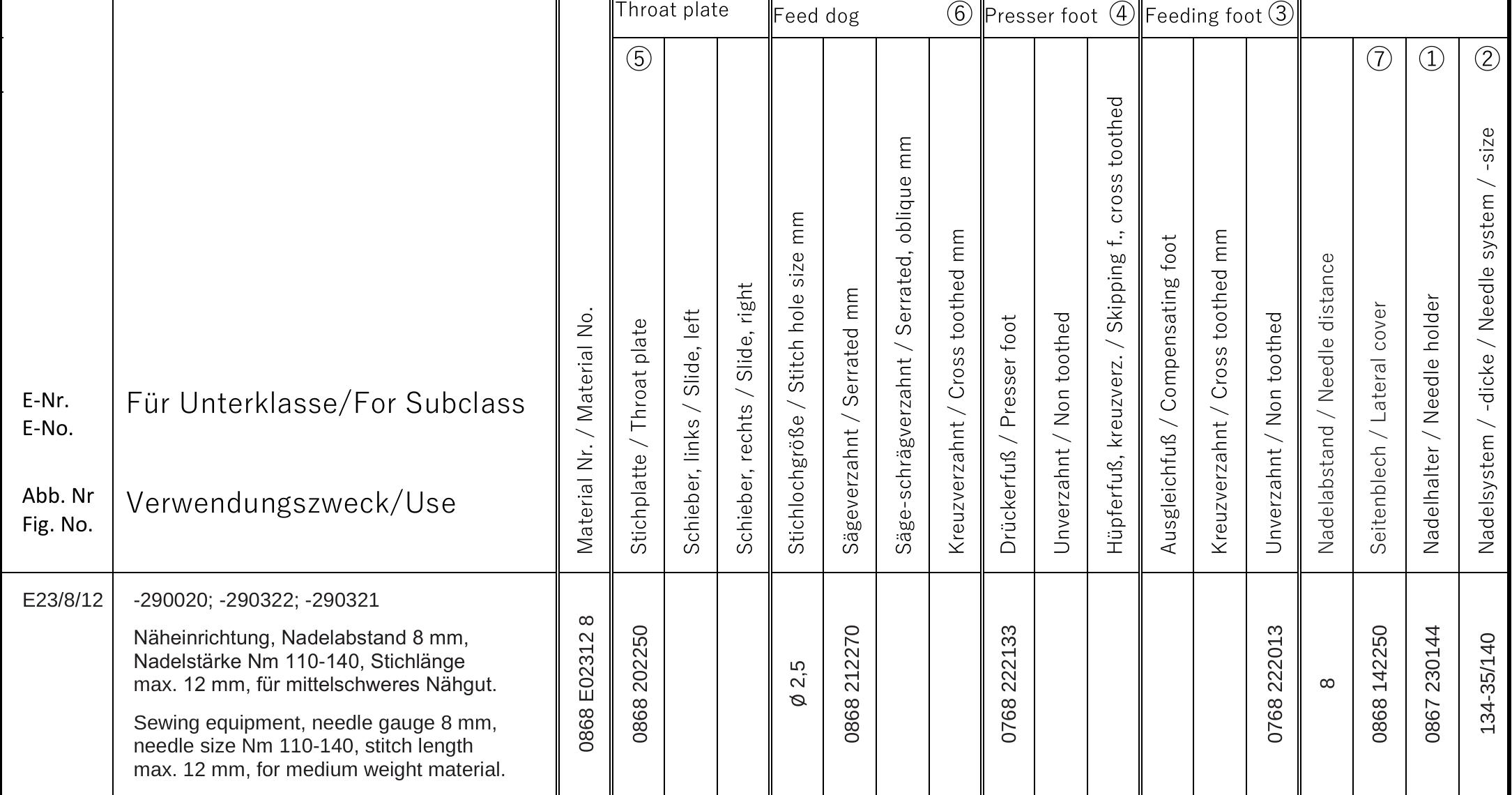

0868 E02312 8 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0768 222013	0768 222013 — транспортирующая лапка	88.53 EUR	→
0768 222133	0768 222133 — прыгающая лапка	145.76 EUR	→
0867 230144	0867 230144 — иглодержатель	189.74 EUR	→
0868 142250	0868 142250 — боковая пластина	76.99 EUR	→
0868 202250	0868 202250 — игольная пластина	72.89 EUR	→
0868 212270	0868 212270 — зубчатая рейка	59.24 EUR	→

Compatible machine configurations

2

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 104) DÜRKOPP ADLER · 868 868-290020-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990207 024)
