DÜRKOPP ADLER · CLASS 868 · E23/10/12

0868 E02312 10

Complete E-equipment card

6parts 0configurations 4documents

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 10 mm,
Nadelstéarke Nm 110-140. Stichlange
max. 12 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 10 mm,
needle size Nm 110-140, stitch length
max. 12 mm, for medium weight material.

Node ID: E23/10/12
Compatible subclasses: 868, 868M
Material number: 0868 E02312 10

Diagrams and additional information

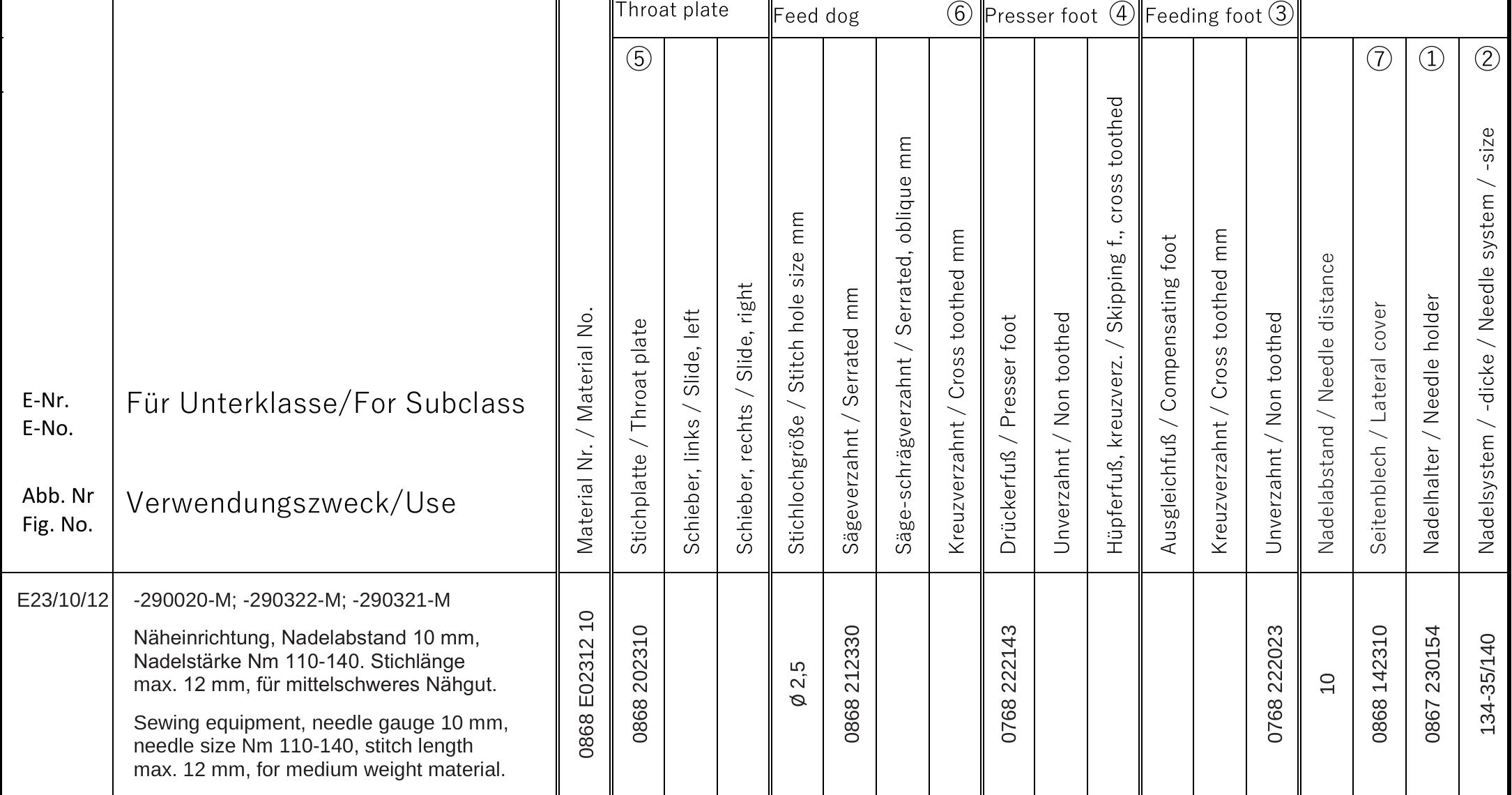

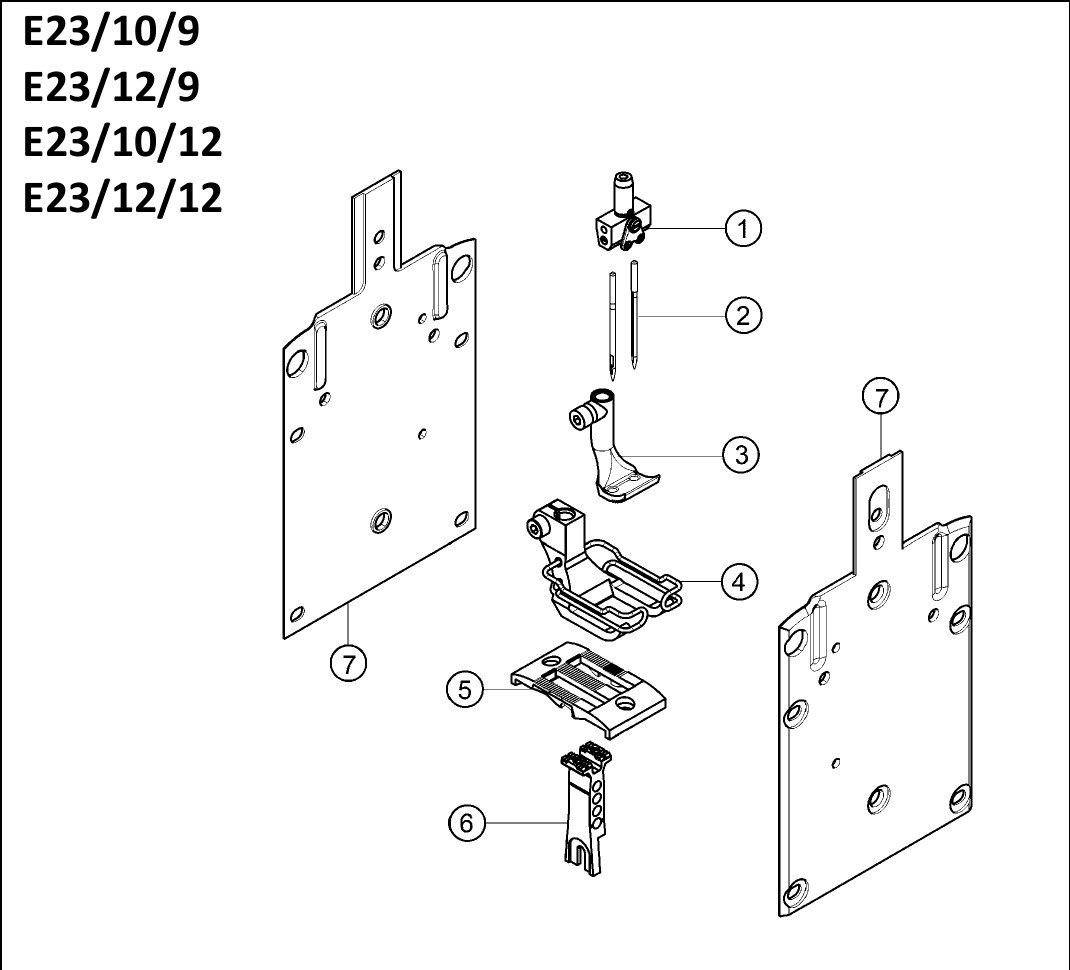

0868 E02312 10 · Schema — Diagram Open original ↗

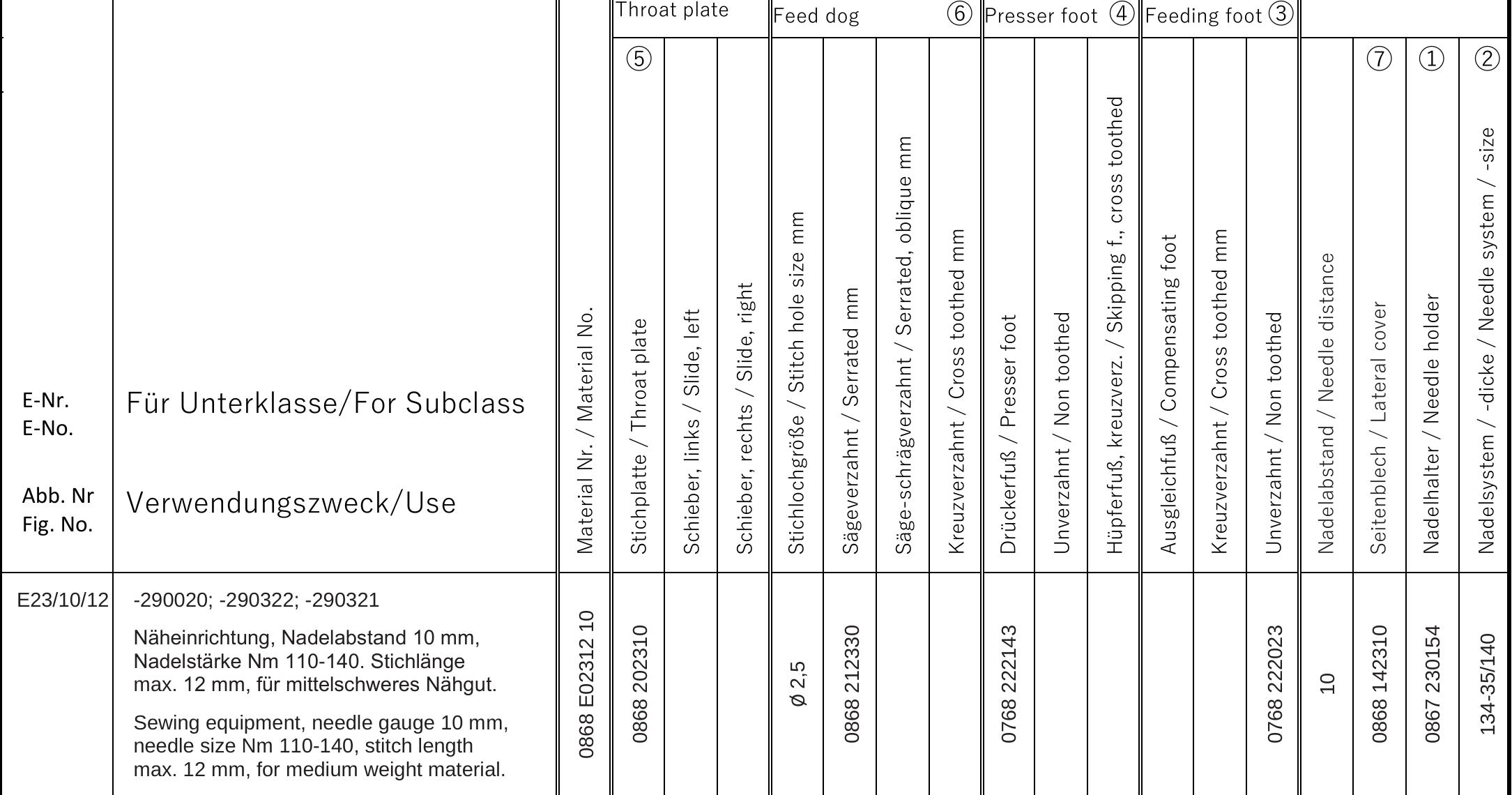

0868 E02312 10 · Additional information — Additional information Open original ↗

Included spare parts

Part number	Description	Price
0768 222023	0768 222023 — лапка	107.90 EUR	→
0768 222143	0768 222143 — прыгающая лапка	164.76 EUR	→
0867 230154	0867 230154 — иглодержатель	189.74 EUR	→
0868 142310	0868 142310 — боковая пластина	77.27 EUR	→
0868 202310	0868 202310 — игольная пластина	95.39 EUR	→
0868 212330	0868 212330 — зубчатая рейка	94.22 EUR	→

Compatible machine configurations

This E-equipment is not included in the current BUNDE machine configurations.
