0868 E02309 12 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 12 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 9 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 12 mm,
needle size Nm 110-140, stitch length
max. 9 mm, for medium weight material.

Node ID: E23/12/9
Compatible subclasses: 868, 868M
Material number: 0868 E02309 12

Diagrams and additional information

4

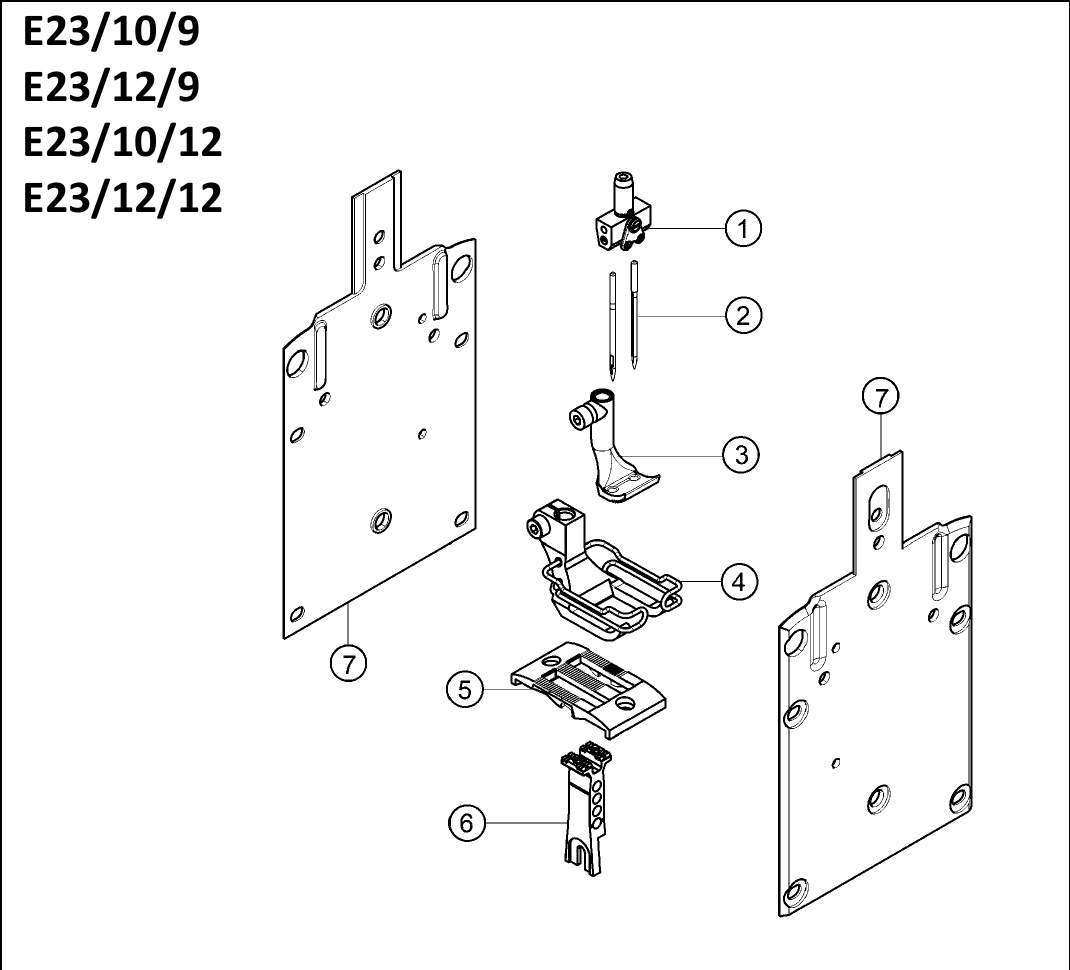

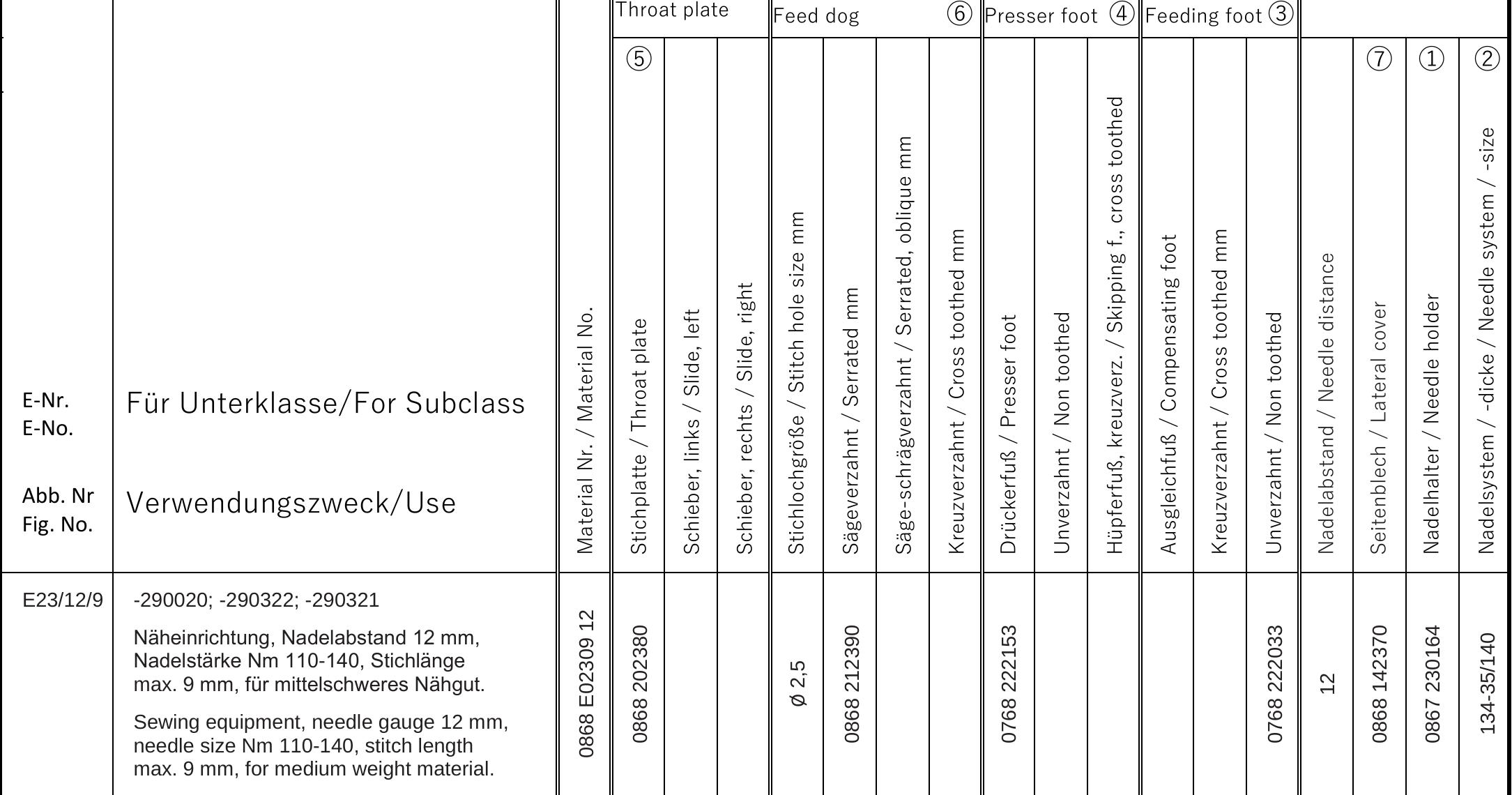

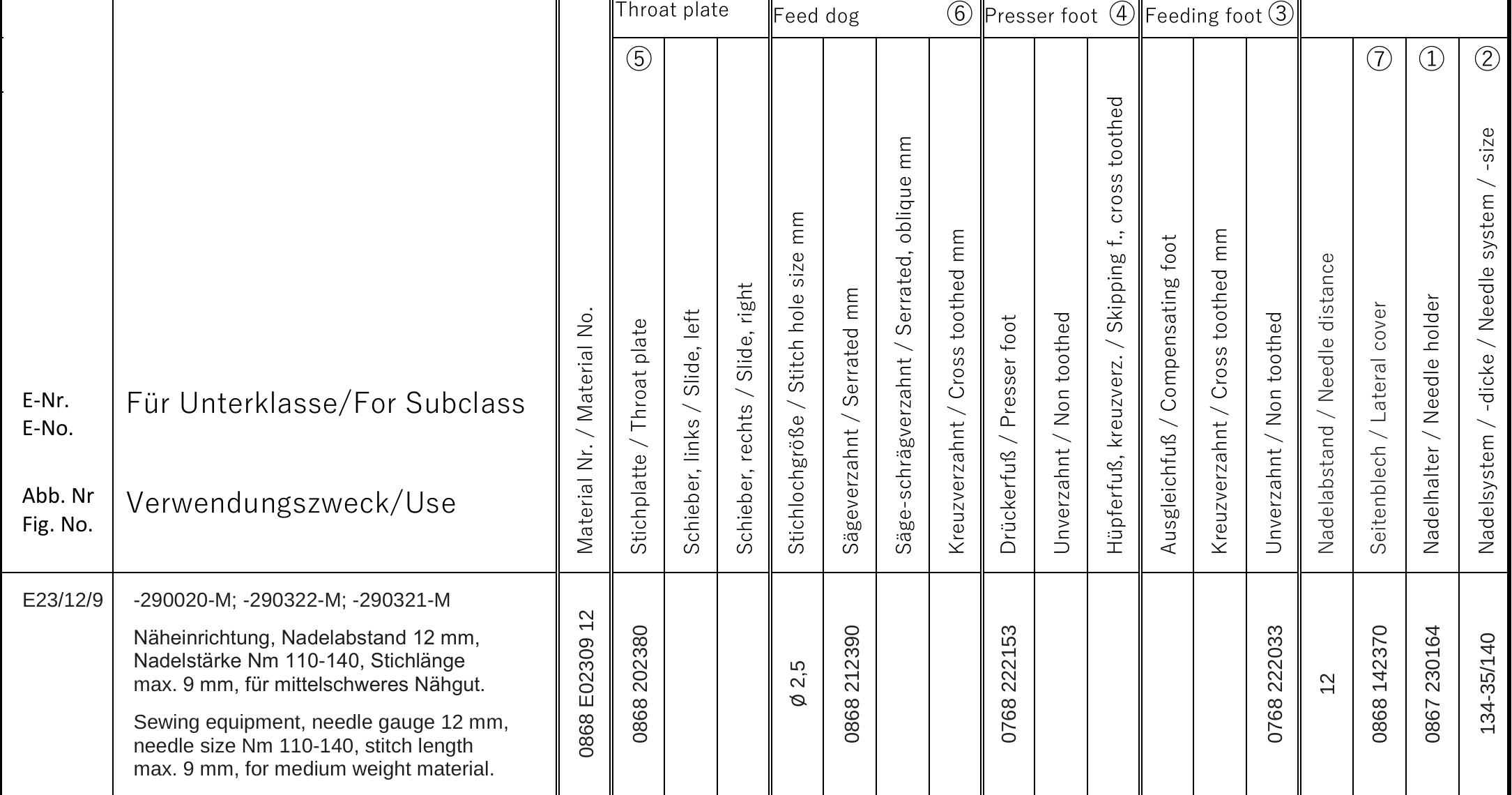

0868 E02309 12 · Schema — Diagram Open original ↗

0868 E02309 12 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0768 222033	0768 222033 — лапка	63.80 EUR	→
0768 222153	0768 222153 — прыгающая лапка	76.77 EUR	→
0867 230164	0867 230164 — иглодержатель	189.74 EUR	→
0868 142370	0868 142370 — боковая пластина	73.58 EUR	→
0868 202380	0868 202380 — игольная пластина	98.02 EUR	→
0868 212390	0868 212390 — зубчатая рейка	105.70 EUR	→

Compatible machine configurations

3

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 086) DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 089) DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 101)
