0868 E02112 16 — Dürkopp Adler 868 E-equipment

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 16 mm,
Nadelstéarke Nm 140-180, Stichlange
max. 12 mm, fir mittelschweres Nahgut.

Sewing equipment, needle gauge 16 mm,
needle size Nm 140-180, stitch length
max. 12 mm, for medium weight material.

Node ID: E21/16/12
Compatible subclasses: 868, 868M
Material number: 0868 E02112 16

Diagrams and additional information

4

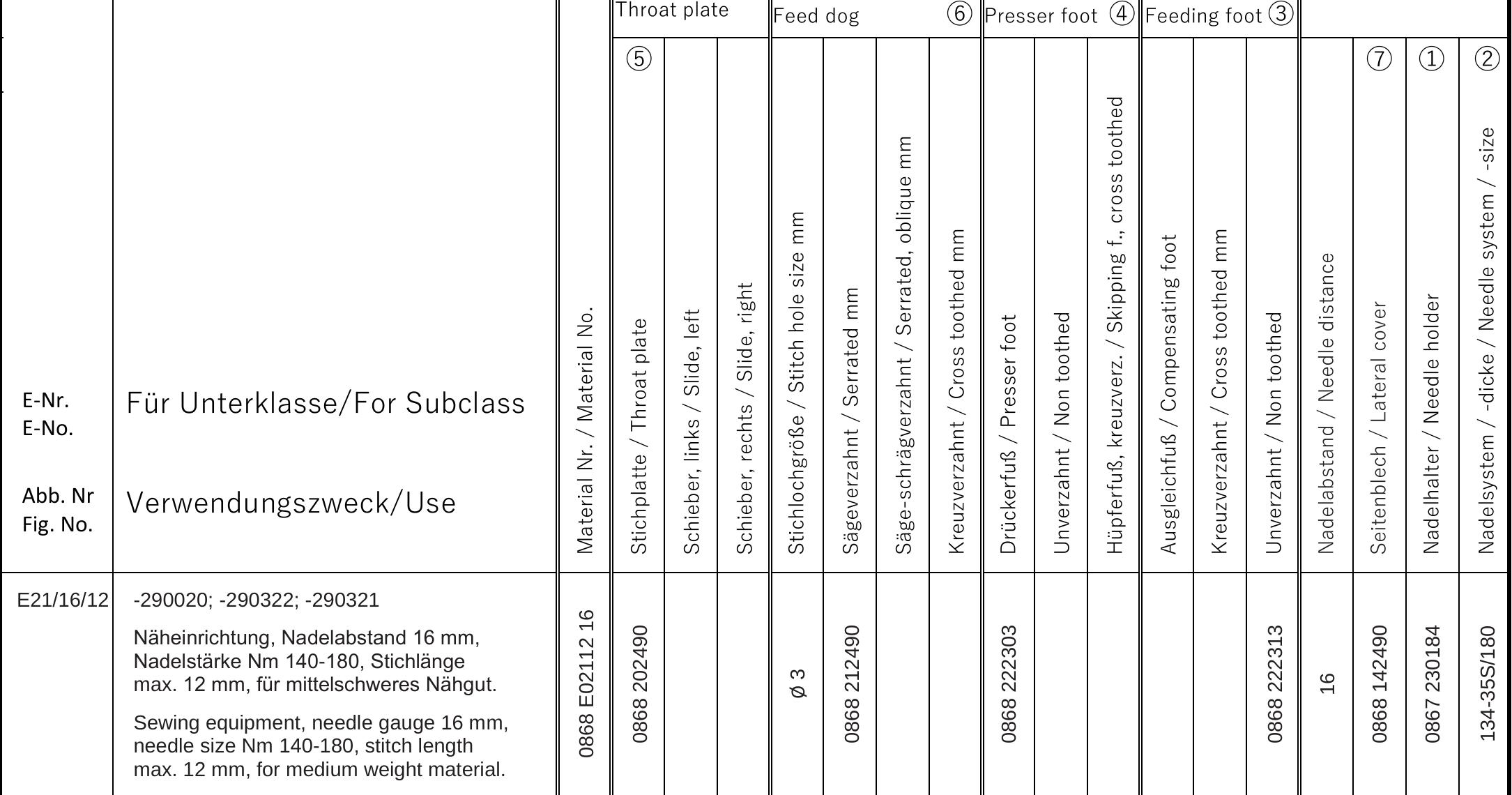

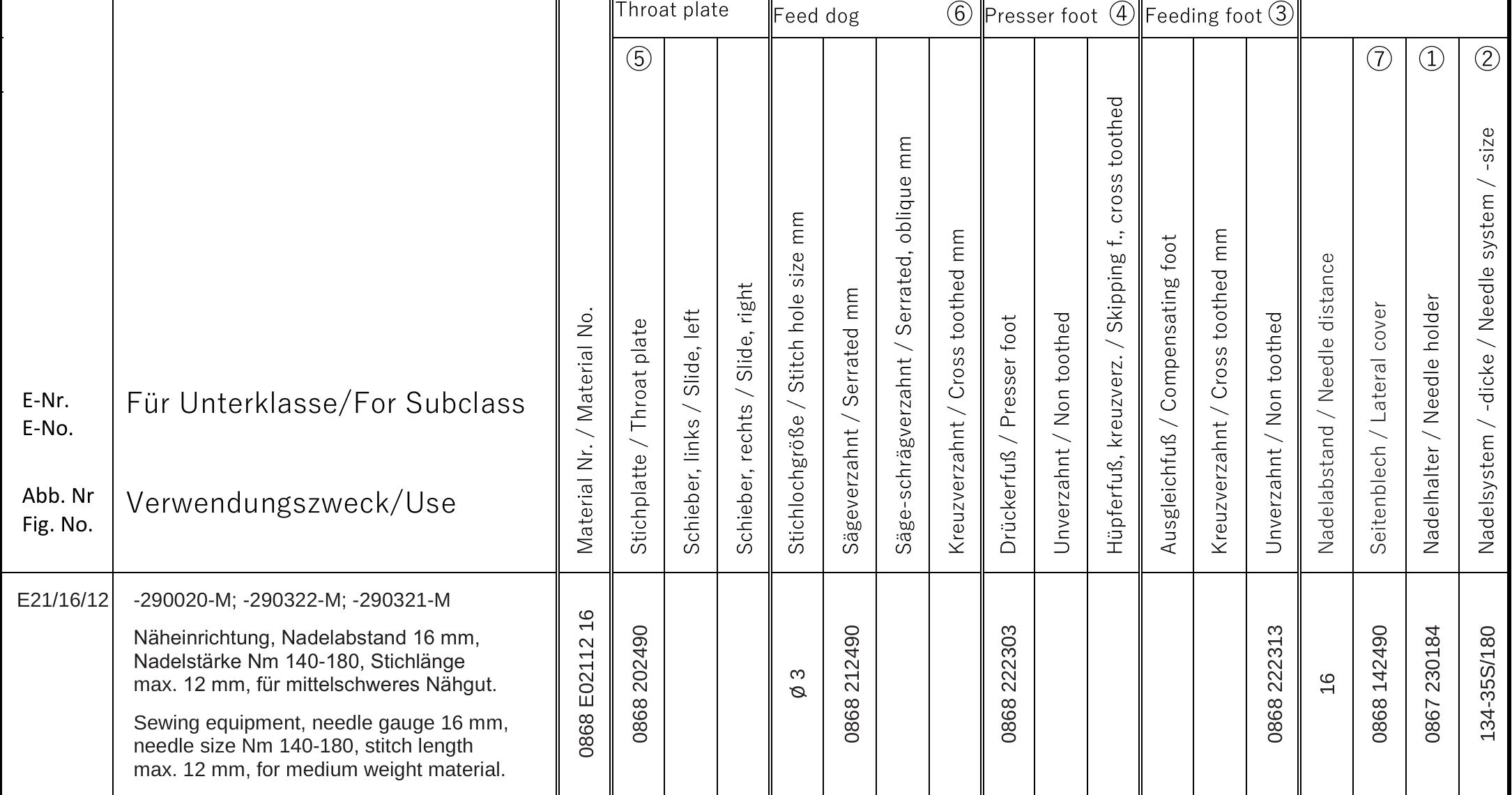

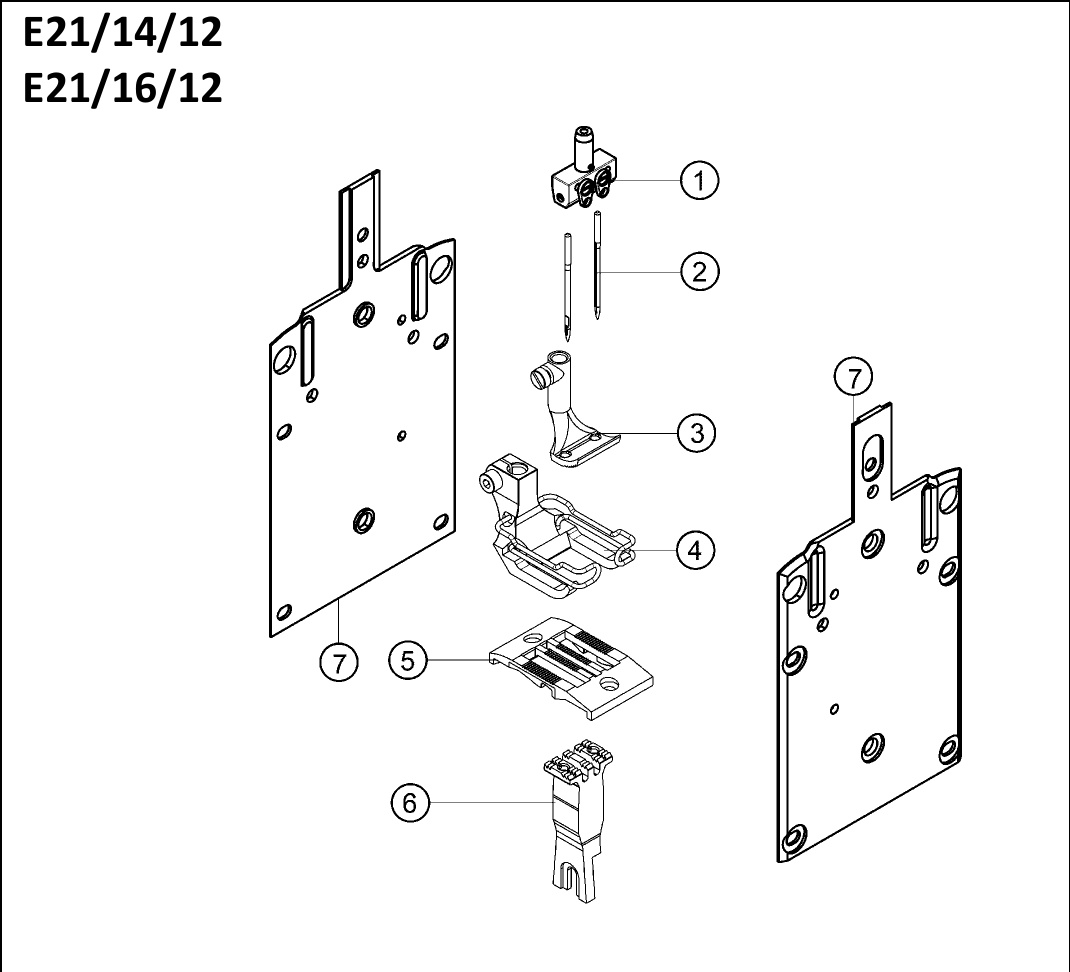

0868 E02112 16 · Schema — Diagram Open original ↗

0868 E02112 16 · Additional information — Additional information Open original ↗

Included spare parts

6

Part number	Description	Price
0867 230184	0867 230184 — иглодержатель	189.74 EUR	→
0868 142490	0868 142490 — боковая пластина	126.14 EUR	→
0868 202490	0868 202490 — игольная пластина	132.98 EUR	→
0868 212490	0868 212490 — зубчатая рейка	157.53 EUR	→
0868 222303	0868 222303 — прижимная лапка NA1	127.19 EUR	→
0868 222313	0868 222313 — лапка NA16	73.94 EUR	→

Compatible machine configurations

2

DÜRKOPP ADLER · 868 868-290020 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990007 080) DÜRKOPP ADLER · 868 868-290020-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990207 020)
